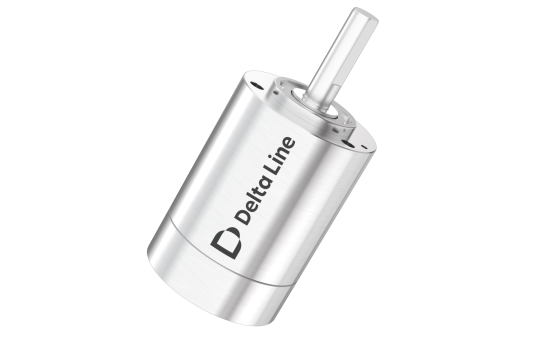

Planetary gearboxes

Our high-performance planetary gearboxes are designed for robustness, to sustain intermittent or sudden load changes and are ideally suited for precise positioning applications. Our planetary gearheads are available with diameters from 8 to 80mm.


More about Gearboxes

Planetary gearboxes
.

Products
Product finder
Technology:
Category:
More Filters
Product name
Series
Size (mm)
Length (L) (mm)
Exact Ratio
Nominal Output Torque (Nm)
Max. Input Speed (rpm)
Recommended Input Speed (rpm)
08GPS-2N-16
Planetary gearbox
GPS 8 8.1 16:1 0.02 20000 12000
12GPS-4N-679
Planetary gearbox
GPS 12 30.1 679:1 0.17 20000 16000
GYP42-S1-4.27
Planetary gearbox
GP 42 42.70 4.269 5.63 9187 3000
08GPS-1N-4
Planetary gearbox
GPS 8 5.5 4:1 0.01 20000 12000
08GPS-2N-36
Planetary gearbox
GPS 8 8.3 36:1 0.008 20000 12000
08GPS-3N-216
Planetary gearbox
GPS 8 11.1 216:1 0.02 20000 12000
08GPS-3N-64
Planetary gearbox
GPS 8 10.7 64:1 0.06 20000 12000
08GPS-4N-1296
Planetary gearbox
GPS 8 13.9 1296:1 0.04 20000 12000
08GPS-4N-256
Planetary gearbox
GPS 8 13.3 256:1 0.08 20000 12000
08GPS-5N-1024
Planetary gearbox
GPS 8 15.9 1024:1 0.1 20000 12000
10GPS-1N-4
Planetary gearbox
GPS 10 9.9 4:1 0.01 15000 12000
10GPS-2N-16
Planetary gearbox
GPS 10 13.4 16:1 0.03 15000 12000
10GPS-3N-64
Planetary gearbox
GPS 10 16.6 64:1 0.1 15000 12000
10GPS-4N-256
Planetary gearbox
GPS 10 19.8 256:1 0.15 15000 12000
10GPS-5N-1024
Planetary gearbox
GPS 10 23 1024:1 0.15 15000 12000
12GPS-1N-5,3
Planetary gearbox
GPS 12 15.5 5.3:1 0.08 20000 16000
12GPS-2N-21
Planetary gearbox
GPS 12 14 21:1 0.11 20000 16000
12GPS-2N-28
Planetary gearbox
GPS 12 14 28:1 0.11 20000 16000
12GPS-3N-138
Planetary gearbox
GPS 12 25.2 138:1 0.14 20000 16000
12GPS-3N-172
Planetary gearbox
GPS 12 25.2 172:1 0.14 20000 16000
12GPS-3N-83
Planetary gearbox
GPS 12 25.2 83:1 0.14 20000 16000
12GPS-4N-326
Planetary gearbox
GPS 12 30.1 326:1 0.17 20000 16000
12GPS-4N-439
Planetary gearbox
GPS 12 30.1 439:1 0.17 20000 16000
12GPS-4N-913
Planetary gearbox
GPS 12 30.1 913:1 0.17 20000 16000
16GPS-1N-5,3
Planetary gearbox
GPS 16 15.8 5.3:1 0.2 15000 12000
16GPS-2N-21
Planetary gearbox
GPS 16 20.7 21:1 0.25 17500 14000
16GPS-2N-28
Planetary gearbox
GPS 16 20.7 28:1 0.25 17500 14000
16GPS-3N-138
Planetary gearbox
GPS 16 25.7 138:1 0.35 20000 16000
16GPS-3N-172
Planetary gearbox
GPS 16 25.7 172:1 0.35 20000 16000
16GPS-3N-83
Planetary gearbox
GPS 16 25.7 83:1 0.35 20000 16000
16GPS-4N-326
Planetary gearbox
GPS 16 30.6 326:1 0.45 20000 16000
16GPS-4N-439
Planetary gearbox
GPS 16 30.6 439:1 0.45 20000 16000
16GPS-4N-679
Planetary gearbox
GPS 16 30.6 679:1 0.45 20000 16000
16GPS-4N-913
Planetary gearbox
GPS 16 30.6 913:1 0.45 20000 16000
22GPS-1N-5,3
Planetary gearbox
GPS 22 19.9 5.3:1 0.5 10000 8000
22GPS-2N-21
Planetary gearbox
GPS 22 26.4 21:1 0.7 12500 10000
22GPS-2N-28
Planetary gearbox
GPS 22 26.4 28:1 0.7 12500 10000
22GPS-3N-138
Planetary gearbox
GPS 22 32.2 138:1 1.2 15000 12000
22GPS-3N-172
Planetary gearbox
GPS 22 32.2 172:1 1.2 15000 12000
22GPS-3N-83
Planetary gearbox
GPS 22 32.2 83:1 1.2 15000 12000
22GPS-4N-326
Planetary gearbox
GPS 22 43 326:1 1.5 15000 12000
22GPS-4N-439
Planetary gearbox
GPS 22 43 439:1 1.5 15000 12000
22GPS-4N-679
Planetary gearbox
GPS 22 43 679:1 1.5 15000 12000
22GPS-4N-913
Planetary gearbox
GPS 22 43 913:1 1.5 15000 12000
26GPS-1N-5,3
Planetary gearbox
GPS 26 21.3 5.3:1 0.75 8750 7000
26GPS-2N-21
Planetary gearbox
GPS 26 30.2 21:1 2.25 10000 8000
26GPS-2N-28
Planetary gearbox
GPS 26 30.2 28:1 2.25 10000 8000
26GPS-3N-138
Planetary gearbox
GPS 26 35.5 138:1 4.5 12500 10000
26GPS-3N-172
Planetary gearbox
GPS 26 35.5 172:1 4.5 12500 10000
26GPS-3N-83
Planetary gearbox
GPS 26 35.5 83:1 4.5 12500 10000
32GPS-1N-5,3
Planetary gearbox
GPS 32 26.7 5.3:1 1.25 7500 6000
32GPS-2N-16
Planetary gearbox
GPS 32 36.3 16:1 2.9 8750 7000
32GPS-2N-26
Planetary gearbox
GPS 32 36.3 26:1 2.9 8750 7000
32GPS-2N-35
Planetary gearbox
GPS 32 36.3 35:1 2.9 8750 7000
32GPS-3N-138
Planetary gearbox
GPS 32 43.9 138:1 5 10000 8000
32GPS-3N-186
Planetary gearbox
GPS 32 43.9 138:1 5 10000 8000
32GPS-3N-62
Planetary gearbox
GPS 32 43.9 62:1 5 10000 8000
42JMS-1-3.71
Planetary gearbox
JMS 42 31.5 3.71 3 4000
GP42-S1-3.93
Planetary gearbox
GP 42 42.70 3.931 6.37 8236 3000
GP42-S1-5.25
Planetary gearbox
GP 42 42.70 5.250 8.66 11943 3000
GP42-S1-6.00
Planetary gearbox
GP 42 42.70 6 5.55 14050 3000
GP42-S1-7.07
Planetary gearbox
GP 42 42.70 7.071 5.09 17061 3000
GP42-S1-8.73
Planetary gearbox
GP 42 42.70 8.727 2.88 18000 3000
GP42-S2-15.45
Planetary gearbox
GP 42 56.50 15.453 10.53 8236 3000
GP42-S2-20.63
Planetary gearbox
GP 42 56.60 20.63 10.73 11943 3000
GP42-S2-25.61
Planetary gearbox
GP 42 56.60 25.61 9.88 14050 3000
GP42-S2-45.82
Planetary gearbox
GP 42 56.60 45.818 10.54 18000 3000
GP56-N1-3.24
Planetary gearbox
GP 56 56 3.24 2,03 5450 3000
GP56-N1-3.96
Planetary gearbox
GP 56 56 3.96 1.97 6621 3000
GP56-N1-5.37
Planetary gearbox
GP 56 56 5.37 1.68 9758 3000
GP56-N1-6.19
Planetary gearbox
GP 56 56 6.19 1.53 9270 3000
GP56-N2-10.68
Planetary gearbox
GP 56 73 10.68 9.93 5453 3000
GP56-N2-15.61
Planetary gearbox
GP 56 73 15.61 11.23 6661 3000
GP56-N2-20.17
Planetary gearbox
GP 56 73 20.17 13.1 6621 3000
GP56-N2-25.88
Planetary gearbox
GP 56 73 25.88 15.84 6621 3000
GP56-N2-35.05
Planetary gearbox
GP 56 73 35.05 15.77 9758 3000
GP56-S1-3.29
Planetary gearbox
GP 56 50.60 3.293 7.73 4658 3500
GP56-T1-3.29
Planetary gearbox
GP 56 54.8 3.293 7.73 4658 3500
GP56-T1-3.93
Planetary gearbox
GP 56 54.8 3.93 18.3 5968 3500
GP56-T1-4.24
Planetary gearbox
GP 56 54.8 4.24 18.15 6589 3500
GP56-T1-5.08
Planetary gearbox
GP 56 54.8 5.08 18.82 8307 3500
GP56-T1-6.53
Planetary gearbox
GP 56 54.8 6.53 20.04 8988 3500
GP56-T1-7.71
Planetary gearbox
GP 56 54.8 7.71 16.89 10919 3500
GP56-T1-9.57
Planetary gearbox
GP 56 54.8 9.57 10.16 13000 3500
GP56-T2-10.84
Planetary gearbox
GP 56 72 10.84 11.22 4658 3500
GP56-T2-15.51
Planetary gearbox
GP 56 72 15.51 25.27 5968 3500
GP56-T2-20.03
Planetary gearbox
GP 56 72 20.03 25.17 8307 3500
GP56-T2-25.71
Planetary gearbox
GP 56 72 25.17 25.83 8988 3500
GP56-T2-32.69
Planetary gearbox
GP 56 72 32.69 25.61 10919 3500
GP56-T2-42.63
Planetary gearbox
GP 56 72 42.63 26.15 8988 3500
GP56-T2-62.33
Planetary gearbox
GP 56 72 62.33 26.48 13000 3500
GP80-T1-3.33
Planetary gearbox
GP 80 103.5 3.33 22.56 3184 3000
GP80-T1-4.18
Planetary gearbox
GP 80 103.5 4.18 36.96 4342 3000
GP80-T1-4.88
Planetary gearbox
GP 80 103.5 4.88 40.38 5307 3000
GP80-T1-6.83
Planetary gearbox
GP 80 103.5 6.83 21.37 7000 3000
GP80-T1-8
Planetary gearbox
GP 80 103.5 8 14.56 7000 3000
GP80-T1-9.75
Planetary gearbox
GP 80 103.5 9.75 10.58 7000 3000
GP80-T2-11.11
Planetary gearbox
GP 80 129 11.11 28.33 3184 3000
GP80-T2-16.29
Planetary gearbox
GP 80 129 16.29 46.73 3184 3000
GP80-T2-20.44
Planetary gearbox
GP 80 129 20.44 47.23 4342 3000
GP80-T2-26.27
Planetary gearbox
GP 80 129 26.27 47.85 5307 3000
GP80-T2-30.75
Planetary gearbox
GP 80 129 30.75 39.48 7000 3000
GP80-T2-66.62
Planetary gearbox
GP 80 129 66.62 33.14 7000 3000
GP56-S1-3.93
Planetary gearbox
GP 56 50.60 3.93 18.03 5968 3500
GP56-S1-4.24
Planetary gearbox
GP 56 50.60 4.241 18.15 6589 3500
GP56-S1-5.08
Planetary gearbox
GP 56 50.60 5.087 18.82 8307 3500
GP56-S1-6.53
Planetary gearbox
GP 56 50.60 6.529 20.04 8988 3500
GP56-S1-7.71
Planetary gearbox
GP 56 50.60 7.714 16.89 10919 3500
GP56-S1-9.55
Planetary gearbox
GP 56 50.60 9.546 10.16 13000 3500
GP56-S2-10.84
Planetary gearbox
GP 56 67.80 10.842 11.22 4658 3500
GP56-S2-15.51
Planetary gearbox
GP 56 67.80 15.504 25.27 5968 3500
GP56-S2-20.03
Planetary gearbox
GP 56 67.80 20.03 25.17 8307 3500
GP56-S2-25.71
Planetary gearbox
GP 56 67.80 25.710 25.83 8988 3500
GP56-S2-32.69
Planetary gearbox
GP 56 67.80 32.718 25.61 10919 3500
GP56-S2-42.63
Planetary gearbox
GP 56 67.80 42.633 26.15 8988 3500
GP56-S2-62.33
Planetary gearbox
GP 56 67.80 62.326 26.48 13000 3500
22JMS-1-3.71
Planetary gearbox
JMS 22 23,4 3.71 0,6 4000
22JMS-1-5.18
Planetary gearbox
JMS 22 23,4 5.18 0,6 4000
22JMS-2-13.76
Planetary gearbox
JMS 22 23,4 13.76 1 4000
22JMS-2-19.22
Planetary gearbox
JMS 22 23,4 19.22 1 4000
22JMS-2-26.83
Planetary gearbox
JMS 22 23,4 26.83 1 4000
22JMS-3-138.99
Planetary gearbox
JMS 22 36.4 138.99 2 4000
22JMS-3-51.06
Planetary gearbox
JMS 22 36.4 51.06 2 4000
22JMS-3-71.3
Planetary gearbox
JMS 22 36.4 71.03 2 4000
22JMS-3-99.55
Planetary gearbox
JMS 22 36.4 99.55 2 4000
28JMS-1-3.71
Planetary gearbox
JMS 28 29 3.71 1.2 4000
28JMS-1-5.18
Planetary gearbox
JMS 28 29 5.18 1.2 4000
28JMS-2-13.76
Planetary gearbox
JMS 28 36.1 13.76 2 4000
28JMS-2-19.22
Planetary gearbox
JMS 28 36.1 19.22 2 4000
28JMS-2-26.83
Planetary gearbox
JMS 28 36.1 26.83 2 4000
28JMS-3-138.99
Planetary gearbox
JMS 28 43 138.99 4 4000
28JMS-3-51.06
Planetary gearbox
JMS 28 43 51.06 4 4000
28JMS-3-71.3
Planetary gearbox
JMS 28 43 71.3 4 4000
28JMS-3-99.55
Planetary gearbox
JMS 28 43 99.55 4 4000
36JMS-1-3.71
Planetary gearbox
JMS 36 27 3.71 2 4000
36JMS-1-5.18
Planetary gearbox
JMS 36 27 5.18 2 4000
36JMS-2-13.76
Planetary gearbox
JMS 36 34.2 13.76 3 4000
36JMS-2-19.22
Planetary gearbox
JMS 36 34.2 19.22 3 4000
36JMS-2-26.83
Planetary gearbox
JMS 36 34.2 26.83 3 4000
36JMS-3-138.99
Planetary gearbox
JMS 36 41.1 138.99 6 4000
36JMS-3-51.06
Planetary gearbox
JMS 36 41.1 51.06 6 4000
36JMS-3-71.3
Planetary gearbox
JMS 36 41.1 71.3 6 4000
36JMS-3-99.55
Planetary gearbox
JMS 36 41.1 99.55 6 4000
42JMS-1-5.18
Planetary gearbox
JMS 42 31.5 5.18 3 4000
42JMS-2-13.76
Planetary gearbox
JMS 42 42.1 13.76 5 4000
42JMS-2-19.22
Planetary gearbox
JMS 42 42.1 19.22 5 4000
42JMS-2-26.83
Planetary gearbox
JMS 42 42.1 26.83 5 4000
42JMS-3-138.99
Planetary gearbox
JMS 42 52.5 138.99 10 4000
42JMS-3-51.06
Planetary gearbox
JMS 42 52.5 51.06 10 4000
42JMS-3-71.3
Planetary gearbox
JMS 42 52.5 71.3 10 4000
42JMS-3-99.55
Planetary gearbox
JMS 42 52.5 99.55 10 4000
56JMS-1-3.6
Planetary gearbox
JMS 56 37.8 3.6 9 4000
56JMS-1-4.25
Planetary gearbox
JMS 56 37.8 4.25 9 4000
56JMS-2-12.96
Planetary gearbox
JMS 56 49.4 12.96 15 4000
56JMS-2-15.3
Planetary gearbox
JMS 56 49.4 15.3 15 4000
56JMS-2-18.06
Planetary gearbox
JMS 56 49.4 18.06 15 4000
56JMS-2-22.67
Planetary gearbox
JMS 56 49.4 22.67 15 4000
56JMS-3-46.66
Planetary gearbox
JMS 56 60.8 46.66 30 4000
56JMS-3-55.08
Planetary gearbox
JMS 56 60.8 55.08 30 4000
56JMS-3-65.03
Planetary gearbox
JMS 56 60.8 65.03 30 4000
56JMS-3-76.77
Planetary gearbox
JMS 56 60.8 76.77 30 4000

Need help?
Talk to our experts



Contact us
Switzerland - Global HQ


Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@delta-line.com
USA


Delta Line North America, Inc
DTC Tech
4600 South Syracuse, 9th Floor
Denver, CO 80237, USA
Phone: +1 303 256 6212
E-mail: infous@delta-line.com
China


Changzhou Delta Line Trade
Company Limited,
414 Building 1,
FuChen HuaYuan
New North District Changzhou,
Jiangsu, China
Follow

© 2020 All rights reserved| Privacy & cookie Policy| Terms & Conditions
Powered by Ico Computer| Sitemap
