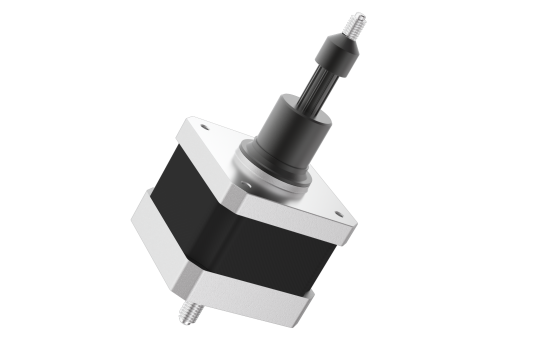

Captive hybrid stepper linear actuators

Our Captive Stepper motor Actuators feature a precision lead screw, nut and a spline shaft to produce accurate and repeatable linear motion. Actuators are manufactured in NEMA sizes 8, 11, 14, 17, 23 and 34. These captive stepper motor actuators operate with a precision lead screw and spline shaft that translates through the motor housing.


More about Stepper Linear Actuators

Captive hybrid stepper linear actuators
.

Products
Product finder
Technology:
Category:
More Filters
Product name
Nema
Length (L) (mm)
Current/Phase (A)
Max. Axial Force (N)
Travel per Step (in)
Screw Pitch (in)
SMA-11D2.1-C-018025-2.00
Captive Linear actuator
11 46 1.9 140 0.000125 0.025
SMA-11D2.1-C-018050-2.00
Captive Linear actuator
11 46 1.9 140 0.000250 0.050
SMA-11D2.1-C-018100-2.00
Captive Linear actuator
11 46 1.9 140 0.0005 0.100
SMA-11D2.1-C-018200-2.00
Captive Linear actuator
11 46 1.9 140 0.001 0.200
SMA-11S2.1-C-018025-2.00
Captive Linear actuator
11 32 1 120 0.000125 0.025
SMA-11S2.1-C-018050-2.00
Captive Linear actuator
11 32 1 120 0.000250 0.050
SMA-11S2.1-C-018100-2.00
Captive Linear actuator
11 32 1 120 0.0005 0.100
SMA-11S2.1-C-018200-2.00
Captive Linear actuator
11 32 1 120 0.001 0.200
SMA-14D2.33-C-025024-50.8
Captive Linear actuator
14 44 2 300 0.00012 0.024
SMA-14D2.33-C-025062-2.00
Captive Linear actuator
14 44 2 300 0.00031 0.062
SMA-14D2.33-C-025250-2.00
Captive Linear actuator
14 44 2 300 0.00125 0.250
SMA-14S2.33-C-025062-2.00
Captive Linear actuator
14 34 1.2 250 0.00031 0.062
SMA-14S2.33-C-025250-2.00
Captive Linear actuator
14 34 1.2 250 0.00125 0.250
SMA-17D2.33-C-025-024-50.8
Captive Linear actuator
17 48 2.55 350 0.00012 0.024
SMA-17D2.33-C-025-031-50.8
Captive Linear actuator
17 48 2.55 350 0.000250 0.050
SMA-17D2.33-C-025-500-50.8
Captive Linear actuator
17 48 2.55 350 0.0025 0.500
SMA-17D2.33-C-025031-2.00
Captive Linear actuator
17 48 2.55 350 0.000155 0.031
SMA-17D2.33-C-025062-2.00
Captive Linear actuator
17 48 2.55 350 0.00031 0.062
SMA-17D2.33-C-025096-2.00
Captive Linear actuator
17 48 2.55 350 0.00048 0.096
SMA-17D2.33-C-025125-2.00
Captive Linear actuator
17 48 2.55 350 0.000625 0.125
SMA-17D2.33-C-025125-2.00
Captive Linear actuator
17 48 2.55 350 0.00125 0.250
SMA-17S2.33-C-025031-2.00
Captive Linear actuator
17 34 1.5 275 0.000155 0.031
SMA-17S2.33-C-025062-2.00
Captive Linear actuator
17 34 1.5 275 0.00031 0.062
SMA-17S2.33-C-025096-2.00
Captive Linear actuator
17 34 1.5 275 0.00048 0.096
SMA-17S2.33-C-025125-2.00
Captive Linear actuator
17 34 1.5 275 0.000625 0.125
SMA-17S2.33-C-025250-2.00
Captive Linear actuator
17 34 1.5 275 0.00125 0.250
SMA-23D3.25-C-037062-2.00
Captive Linear actuator
23 64 3.3 1000 0.00031 0.062
SMA-23D3.25-C-037100-2.00
Captive Linear actuator
23 64 3.3 1000 0.0005 0.100
SMA-23D3.25-C-037200-2.00
Captive Linear actuator
23 64 3.3 1000 0.001 0.200
SMA-23S3.25-C-037062-2.00
Captive Linear actuator
23 45 2 889 0.00031 0.062
SMA-23S3.25-C-037100-2.00
Captive Linear actuator
23 45 2 889 0.001 0.200
SMA-23S3.25-C-037200-2.00
Captive Linear actuator
23 45 2 889 1 200
SMA-8S2.5-C -012024-19.1
Captive Linear actuator
08 28 0.49 45 0.00012 0.024
SMA-8S2.5-C -012024-9.00
Captive Linear actuator
08 28 0.49 45 0.00012 0.024
SMA-8S2.5-C -012048-31.8
Captive Linear actuator
08 28 0.49 45 0.00012 0.048
