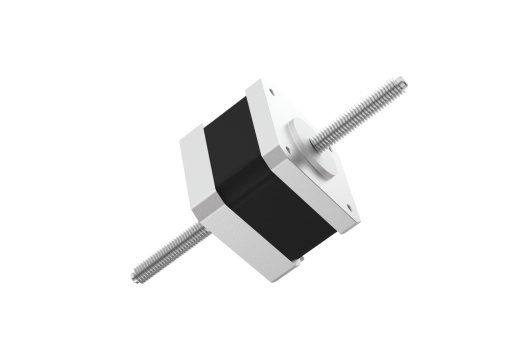

Stepper Linear Actuators

Stepper motor linear actuators are a type of actuator that convert rotational motion in motor into linear or straight push/pull movements. Mini stepper motor linear actuators are often the preferred solution when you need simple and safe movement with accurate precision and smooth motion control. Our portfolio offers External, Captive and Non-Captive stepper linear actuator options with an extensive Lead screws selection.


More about Stepper Linear Actuators

Stepper Linear Actuators
.

Products
Product finder
Technology:
Category:
More Filters
Product name
Nema
Length (L) (mm)
Current/Phase (A)
Max. Axial Force (N)
Travel per Step (in)
Screw Pitch (in)
SMA-23D5-N-037400-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.002 0.400
SMA-11D2.1-N-018100-00-6.00
Non-Captive Linear actuator
11 46 1.9 140 0.0005 0.100
SMA-11D2.1-N-018050-00-6.00
Non-Captive Linear actuator
11 46 1.9 140 0.000250 0.050
SMA-11D2.1-C-018025-2.00
Captive Linear actuator
11 46 1.9 140 0.000125 0.025
SMA-11D2.1-C-018050-2.00
Captive Linear actuator
11 46 1.9 140 0.000250 0.050
SMA-11D2.1-C-018100-2.00
Captive Linear actuator
11 46 1.9 140 0.0005 0.100
SMA-11D2.1-C-018200-2.00
Captive Linear actuator
11 46 1.9 140 0.001 0.200
SMA-11D2.1-E-016039NFA-6.00
External Linear actuator
11 46 1.9 89 0.000196 0.0393701
SMA-11D2.1-E-016196NFA-6.00
External Linear actuator
11 46 1.9 89 0.000984 0.19685
SMA-11D2.1-E-018050NFA-6.00
External Linear actuator
11 46 1.9 89 0.000250 0.050
SMA-11D2.1-E-018100NFA-6.00
External Linear actuator
11 46 1.9 89 0.0005 0.100
SMA-11D2.1-N-018025-00-6.00
Non-Captive Linear actuator
11 46 1.9 140 0.000125 0.025
SMA-11D2.1-N-018200-00-6.00
Non-Captive Linear actuator
11 46 1.9 140 0.001 0.200
SMA-11S2.1-C-018025-2.00
Captive Linear actuator
11 32 1 120 0.000125 0.025
SMA-11S2.1-C-018050-2.00
Captive Linear actuator
11 32 1 120 0.000250 0.050
SMA-11S2.1-C-018100-2.00
Captive Linear actuator
11 32 1 120 0.0005 0.100
SMA-11S2.1-C-018200-2.00
Captive Linear actuator
11 32 1 120 0.001 0.200
SMA-11S2.1-E-016039NFA-6.00
External Linear actuator
11 32 1 89 0.000196 0.0393701
SMA-11S2.1-E-016196NFA-6.00
External Linear actuator
11 32 1 89 0.000984 0.19685
SMA-11S2.1-E-018050NFA-6.00
External Linear actuator
11 32 1 89 0.000250 0.050
SMA-11S2.1-E-018100NFA-6.00
External Linear actuator
11 32 1 89 0.0005 0.100
SMA-11S2.1-N-018025-00-6.00
Non-Captive Linear actuator
11 32 1 120 0.000125 0.025
SMA-11S2.1-N-018050-00-6.00
Non-Captive Linear actuator
11 32 1 120 0.000250 0.050
SMA-11S2.1-N-018100-00-6.00
Non-Captive Linear actuator
11 32 1 120 0.0005 0.100
SMA-11S2.1-N-018200-00-6.00
Non-Captive Linear actuator
11 32 1 120 0.001 0.200
SMA-14D2.33-C-025024-50.8
Captive Linear actuator
14 44 2 300 0.00012 0.024
SMA-14D2.33-C-025062-2.00
Captive Linear actuator
14 44 2 300 0.00031 0.062
SMA-14D2.33-C-025250-2.00
Captive Linear actuator
14 44 2 300 0.00125 0.250
SMA-14D2.33-E-024039NFA-6.00
External Linear actuator
14 44 2 400 0.000196 0.0393701
SMA-14D2.33-E-025024NFA-6.00
External Linear actuator
14 44 2 400 0.00012 0.024
SMA-14D5-N-025024-00-6.00
Non-Captive Linear actuator
14 44 0.9 300 0.00012 0.024
SMA-14D5-N-025062-00-6.00
Non-Captive Linear actuator
14 44 0.9 300 0.00031 0.062
SMA-14D5-N-025250-00-6.00
Non-Captive Linear actuator
14 44 0.9 300 0.00125 0.250
SMA-14S2.33-C-025062-2.00
Captive Linear actuator
14 34 1.2 250 0.00031 0.062
SMA-14S2.33-C-025250-2.00
Captive Linear actuator
14 34 1.2 250 0.00125 0.250
SMA-14S2.33-E-024024NFA-6.00
External Linear actuator
14 34 1.2 275 0.00012 0.024
SMA-14S2.33-E-024039NFA-6.00
External Linear actuator
14 34 1.2 275 0.000196 0.0393701
SMA-14S5-N-025024-00-6.00
Non-Captive Linear actuator
14 34 0.6 275 0.00012 0.024
SMA-14S5-N-025062-00-6.00
Non-Captive Linear actuator
14 34 0.6 275 0.00031 0.062
SMA-14S5-N-025250-00-6.00
Non-Captive Linear actuator
14 34 0.6 275 0.00125 0.250
SMA-17D2.33-C-025-024-50.8
Captive Linear actuator
17 48 2.55 350 0.00012 0.024
SMA-17D2.33-C-025-031-50.8
Captive Linear actuator
17 48 2.55 350 0.000250 0.050
SMA-17D2.33-C-025-500-50.8
Captive Linear actuator
17 48 2.55 350 0.0025 0.500
SMA-17D2.33-C-025031-2.00
Captive Linear actuator
17 48 2.55 350 0.000155 0.031
SMA-17D2.33-C-025062-2.00
Captive Linear actuator
17 48 2.55 350 0.00031 0.062
SMA-17D2.33-C-025096-2.00
Captive Linear actuator
17 48 2.55 350 0.00048 0.096
SMA-17D2.33-C-025125-2.00
Captive Linear actuator
17 48 2.55 350 0.000625 0.125
SMA-17D2.33-C-025125-2.00
Captive Linear actuator
17 48 2.55 350 0.00125 0.250
SMA-17D2.33-E-024039NFA-6.00
External Linear actuator
17 48 2.55 350 0.000196 0.0393701
SMA-17D2.33-E-024236NFA-6.00
External Linear actuator
17 48 2.55 350 0.001181 0.23622
SMA-17D2.33-E-024472NFA-6.00
External Linear actuator
17 48 2.55 350 0.002362 0.472441
SMA-17D2.33-E-025024NFA-6.00
External Linear actuator
17 48 2.55 350 0.00012 0.024
SMA-17D5-N-025024-00-6.00
Non-Captive Linear actuator
17 48 1.3 350 0.00012 0.024
SMA-17D5-N-025062-00-6.00
Non-Captive Linear actuator
17 48 1.3 350 0.00031 0.062
SMA-17D5-N-025125-00-6.00
Non-Captive Linear actuator
17 48 1.3 350 0.000625 0.125
SMA-17D5-N-025250-00-6.00
Non-Captive Linear actuator
17 48 1.3 350 0.00125 0.250
SMA-17S2.33-C-025031-2.00
Captive Linear actuator
17 34 1.5 275 0.000155 0.031
SMA-17S2.33-C-025062-2.00
Captive Linear actuator
17 34 1.5 275 0.00031 0.062
SMA-17S2.33-C-025096-2.00
Captive Linear actuator
17 34 1.5 275 0.00048 0.096
SMA-17S2.33-C-025125-2.00
Captive Linear actuator
17 34 1.5 275 0.000625 0.125
SMA-17S2.33-C-025250-2.00
Captive Linear actuator
17 34 1.5 275 0.00125 0.250
SMA-17S2.33-E-024039NFA-6.00
External Linear actuator
17 34 1.5 275 0.000196 0.0393701
SMA-17S2.33-E-024236NFA-6.00
External Linear actuator
17 34 1.5 275 0.001181 0.23622
SMA-17S2.33-E-024472NFA-6.00
External Linear actuator
17 34 1.5 275 0.002362 0.472441
SMA-17S2.33-E-025024NFA-6.00
External Linear actuator
17 34 1.5 275 0.00012 0.024
SMA-17S5-N-025024-00-6.00
Non-Captive Linear actuator
17 34 0.7 275 0.00012 0.024
SMA-17S5-N-025062-00-6.00
Non-Captive Linear actuator
17 34 0.7 275 0.00031 0.062
SMA-17S5-N-025125-00-6.00
Non-Captive Linear actuator
17 34 0.7 275 0.000625 0.125
SMA-17S5-N-025250-00-6.00
Non-Captive Linear actuator
17 34 0.7 275 0.00125 0.250
SMA-23D3.25-C-037062-2.00
Captive Linear actuator
23 64 3.3 1000 0.00031 0.062
SMA-23D3.25-C-037100-2.00
Captive Linear actuator
23 64 3.3 1000 0.0005 0.100
SMA-23D3.25-C-037200-2.00
Captive Linear actuator
23 64 3.3 1000 0.001 0.200
SMA-23D3.25-E-037100NFA-6.00
External Linear actuator
23 64 0.96 1000 0.0005 0.100
SMA-23D5-N-037062-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.00031 0.062
SMA-23D5-N-037083-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.000415 0.083
SMA-23D5-N-037100-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.0005 0.100
SMA-23D5-N-037166-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.00083 0.166
SMA-23D5-N-037200-00-6.00
Non-Captive Linear actuator
23 64 2.16 1000 0.001 0.200
SMA-23S3.25-C-037062-2.00
Captive Linear actuator
23 45 2 889 0.00031 0.062
SMA-23S3.25-C-037100-2.00
Captive Linear actuator
23 45 2 889 0.001 0.200
SMA-23S3.25-C-037200-2.00
Captive Linear actuator
23 45 2 889 1 200
SMA-23S3.25-E-037100NFA-6.00
External Linear actuator
23 45 2 889 0.0005 0.100
SMA-23S3.25-E-039196NFA-6.00
External Linear actuator
23 45 2 889 0.000984 0.19685
SMA-23S3.25-E-039472NFA-6.00
External Linear actuator
23 45 2 889 0.002362 0.472441
SMA-23S5-N-037062-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.00031 0.062
SMA-23S5-N-037083-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.000415 0.083
SMA-23S5-N-037100-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.0005 0.100
SMA-23S5-N-037166-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.00083 0.166
SMA-23S5-N-037200-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.001 0.200
SMA-23S5-N-037400-00-6.00
Non-Captive Linear actuator
23 45 1.3 889 0.002 0.400
SMA-34S5-N-062100-00-6.00
Non-Captive Linear actuator
34 78,5 3.12 2000 0.0005 0.100
SMA-34S5-N-062500-00-6.00
Non-Captive Linear actuator
34 78,5 3.12 2000 0.0025 0.500
SMA-8D2.5-E-012024NFA-4.00
External Linear actuator
08 34 1.33 89 0.00012 0.024
SMA-8D2.5-E-016039NFA-4.00
External Linear actuator
08 34 1.33 89 0.000196 0.0393701
SMA-8S2.5-C -012024-19.1
Captive Linear actuator
08 28 0.49 45 0.00012 0.024
SMA-8S2.5-C -012024-9.00
Captive Linear actuator
08 28 0.49 45 0.00012 0.024
SMA-8S2.5-C -012048-31.8
Captive Linear actuator
08 28 0.49 45 0.00012 0.048
SMA-8S2.5-E-012024NFA-6.00
External Linear actuator
08 28 0.5 50 0.00012 0.024
SMA-8S2.5-E-016039NFA-6.00
External Linear actuator
08 28 0.5 50 0.000196 0.0393701
SMA-8S2.5-N-014012-00-4.00
Non-Captive Linear actuator
08 28 0.5 50 0.00006 0.012
SMA-8S2.5-N-014024-00-4.00
Non-Captive Linear actuator
08 28 0.5 50 0.00012 0.024
SMA-8S2.5-N-014048-00-4.00
Non-Captive Linear actuator
08 28 0.5 50 0.00024 0.048
SMA-8S2.5-N-014078-00-4.00
Non-Captive Linear actuator
08 28 0.5 50 0.000393 0.0787
