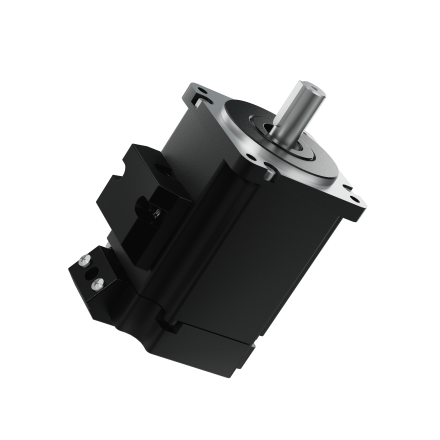

Low voltage servomotorsOur Servomotors have a higher torque density than our BLDC slotted motors and are made for high performance applications where the most power in the smallest package size is critical. Various encoder feedback options are available for our Servomotors, based on the needs of the application. Options include incremental encoders, with a variety of resolutions, and absolute encoders, both single-turn and multi-turn. More about BLDC servomotors |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
38SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 38 |
| Length (L) (mm) | 72 - 122 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 0,16 - 0,32 |
| Rated Speed (rpm) | 3000 |
60SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 60 |
| Length (L) (mm) | 86,5 - 142,5 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 0,64 - 1,27 |
| Rated Speed (rpm) | 3000 |
80SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 80 |
| Length (L) (mm) | 118 - 171 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 2,39 - 3,18 |
| Rated Speed (rpm) | 3000 |
100SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 100 |
| Length (L) (mm) | 142 - 199 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 3,18 - 4,77 |
| Rated Speed (rpm) | 3000 |
110SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 110 |
| Length (L) (mm) | 156.5 - 209 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 4.77 - 6.37 |
| Rated Speed (rpm) | 3000 |
130SV-48VDC
BLDC Servomotors - Low voltage
| Size (mm) | 130 |
| Length (L) (mm) | 165 - 221 |
| Nominal Voltage | 48 VDC |
| Rated Torque (Nm) | 9,55 - 14,3 |
| Rated Speed (rpm) | 2000 |
