Brushed DC motors

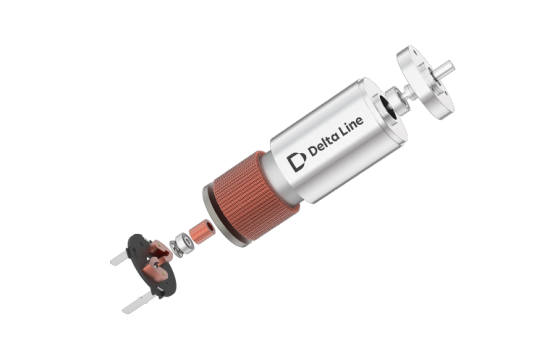

Our brushed DC motors technology delivers compact, light and powerful drives with low inertia. These robust high torque motors are equipped with ironless rotor and powerful permanent magnets, delivering very high acceleration. Available in diameter 8 to 35mm, with rated torque up to 138mNm and available with precious metal or graphite brushes.


More about Brushed DC motors

Brushed DC motors
.

Products
Product finder
Technology:
Category:
More Filters
Product name
Commutation
Size (mm)
Length (L) (mm)
Rated Voltage (Vdc)
Rated Torque (mNm)
Rated Speed (rpm)
08DC16N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 8 16 12 0.614 11000
08DC16N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 8 16 6 0.641 4190
10DC17N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 10 17.7 12 0.905 3890
10DC17N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 10 17.7 3 0.948 4690
10DC17N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 10 17.7 6 0.993 3310
10DC25N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 10 25.2 12 2.03 5980
10DC25N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 10 25.2 3 2.05 6930
10DC25N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 10 25.2 6 1.94 6640
12DC19N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 12 19.4 12 1.88 3620
12DC19N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 12 19.4 3 1.92 3760
12DC19N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 12 19.4 6 1.95 3870
12DC28N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 12 28.2 12 3.89 5560
12DC28N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 12 28.2 3 2.88 6230
12DC28N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 12 28.2 6 3.88 5540
16DC25P-12V-G
Brushed DC Coreless
Graphite Brushes 16 25.4 12 4.31 6200
16DC25P-12V-PM
Brushed DC Coreless
Precious Metal Brushes 16 25.4 12 3.92 4390
16DC25P-24V-G
Brushed DC Coreless
Graphite Brushes 16 25.4 24 4.76 6580
16DC25P-24V-PM
Brushed DC Coreless
Precious Metal Brushes 16 25.4 24 3.8 4210
16DC25P-6V-G
Brushed DC Coreless
Graphite Brushes 16 25.4 6 3.71 6770
16DC25P-6V-PM
Brushed DC Coreless
Precious Metal Brushes 16 25.4 6 4.06 4830
16DC26N-12V-G
Brushed DC Coreless
Graphite Brushes 16 26.5 12 4.31 6200
16DC26N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 16 26.5 12 5.19 3320
16DC26N-24V-G
Brushed DC Coreless
Graphite Brushes 16 26.5 24 4.76 6580
16DC26N-24V-PM
Brushed DC Coreless
Precious Metal Brushes 16 26.5 24 4.99 3200
16DC26N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 16 26.5 3 5.15 3350
16DC26N-6V-G
Brushed DC Coreless
Graphite Brushes 16 25.4 6 3.71 6770
16DC26N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 16 26.5 6 5.36 3760
16DC40N-12V-G
Brushed DC Coreless
Graphite Brushes 16 40.4 12 10.4 10700
16DC40N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 16 40.4 12 10.8 4490
16DC40N-24V-G
Brushed DC Coreless
Graphite Brushes 16 40.4 24 11.3 10600
16DC40N-24V-PM
Brushed DC Coreless
Precious Metal Brushes 16 40.4 24 10.7 4630
16DC40N-3V-PM
Brushed DC Coreless
Precious Metal Brushes 16 40.4 3 5.06 5450
16DC40N-6V-G
Brushed DC Coreless
Graphite Brushes 16 40.4 6 8.58 11000
16DC40N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 16 40.4 6 10 4920
22DC32P-12V-G
Brushed DC Coreless
Graphite Brushes 22 32 12 12.6 5240
22DC32P-12V-PM
Brushed DC Coreless
Precious Metal Brushes 22 32 12 10.3 4240
22DC32P-24V-G
Brushed DC Coreless
Graphite Brushes 22 32 24 11.8 5350
22DC32P-24V-PM
Brushed DC Coreless
Precious Metal Brushes 22 32 24 10.4 3440
22DC32P-6V-G
Brushed DC Coreless
Graphite Brushes 22 32 6 11.5 4950
22DC32P-6V-PM
Brushed DC Coreless
Precious Metal Brushes 22 32 6 8.54 4280
22DC34N-12V-G
Brushed DC Coreless
Graphite Brushes 22 34.2 12 14.6 10700
22DC34N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 22 34.2 12 14.7 4670
22DC34N-24V-G
Brushed DC Coreless
Graphite Brushes 22 34.2 24 15.3 10800
22DC34N-24V-PM
Brushed DC Coreless
Precious Metal Brushes 22 34.2 24 13.6 4700
22DC34N-48V-G
Brushed DC Coreless
Graphite Brushes 22 34.2 48 14 10900
22DC34N-48V-PM
Brushed DC Coreless
Precious Metal Brushes 22 34.2 48 13.6 4240
22DC34N-6V-G
Brushed DC Coreless
Graphite Brushes 22 34.2 6 14.4 9700
22DC34N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 22 34.2 6 10.7 4960
22DC47N-12V-G
Brushed DC Coreless
Graphite Brushes 22 47.2 12 30.5 10700
22DC47N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 22 47.2 12 29.5 4000
22DC47N-24V-PM
Brushed DC Coreless
Precious Metal Brushes 22 47.2 24 29.2 4070
22DC47N-48V-G
Brushed DC Coreless
Graphite Brushes 22 47.2 48 30.3 9020
22DC47N-48V-PM
Brushed DC Coreless
Precious Metal Brushes 22 47.2 48 27.8 4180
22DC47N-6V-PM
Brushed DC Coreless
Precious Metal Brushes 22 47.2 6 14.1 5380
22DC47N-9V-G
Brushed DC Coreless
Graphite Brushes 22 47.2 9 27 11400
26DC44P-12V-PM
Brushed DC Coreless
Precious Metal Brushes 26 44.7 12 20.8 3790
26DC44P-24V-G
Brushed DC Coreless
Graphite Brushes 26 44.7 24 26.3 8100
26DC44P-24V-PM
Brushed DC Coreless
Precious Metal Brushes 26 44.7 24 28.8 3450
26DC44P-48V-G
Brushed DC Coreless
Graphite Brushes 26 44.7 48 28.3 7840
26DC57N-12V-G
Brushed DC Coreless
Graphite Brushes 26 57 12 46.9 9460
26DC57N-12V-PM
Brushed DC Coreless
Precious Metal Brushes 26 57 12 46.1 4690
26DC57N-24V-G
Brushed DC Coreless
Graphite Brushes 26 57 24 57.8 9690
26DC57N-24V-PM
Brushed DC Coreless
Precious Metal Brushes 26 57 24 52.3 4600
26DC57N-48V-G
Brushed DC Coreless
Graphite Brushes 26 57 48 59.1 9730
26DC57N-48V-PM
Brushed DC Coreless
Precious Metal Brushes 26 57 48 50.3 4570
26DC57N-9V-PM
Brushed DC Coreless
Precious Metal Brushes 26 57 9 32.9 5060
32DC72N-12V-G
Brushed DC Coreless
Graphite Brushes 32 72 12 89.4 6560
32DC72N-24V-G
Brushed DC Coreless
Graphite Brushes 32 72 24 108 7710
32DC72N-48V-G
Brushed DC Coreless
Graphite Brushes 32 72 48 123 7260
35DC70N-12V-G
Brushed DC Coreless
Graphite Brushes 35 70.5 12 77.7 7610
35DC70N-24V-G
Brushed DC Coreless
Graphite Brushes 35 70.5 24 121 7160
35DC70N-48V-G
Brushed DC Coreless
Graphite Brushes 35 70.5 48 138 6140
