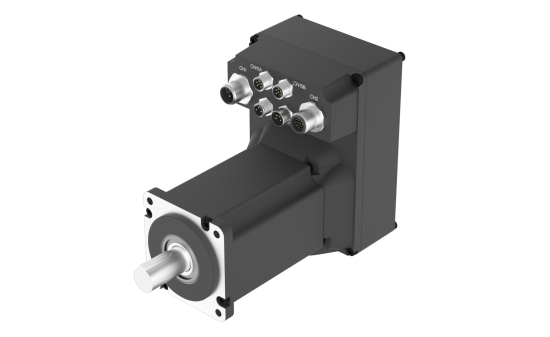

IVI060 with Brake

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.


More about Servo motors with Motion controller

IVI060 with Brake
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Power (Watt)
Rated Voltage (Vdc)
Brake
IVI060 0200BX100X M-S200 60 167 Modbus-RTU 200 48 24VDC - 1.5Nm
IVI060 0200BX100X C-S200 60 167 CANopen - programmable 200 48 24VDC - 1.5Nm
IVI060 0200BX100X C-S402 60 167 CANopen 200 48 24VDC - 1.5Nm
IVI060 0200BXX000 T-S200 60 167 Modbus TCP 200 48 24VDC - 1.5Nm
IVI060 0200BXX000 E-S402 60 167 EtherCAT 200 48 24VDC - 1.5Nm
IVI060 0200BX3000 P-S200 60 167 Profinet 200 48 24VDC - 1.5Nm
IVI060 0200BX3000 R-S402 60 167 PowerLink 200 48 24VDC - 1.5Nm
IVI060 0200BX3000 H-S200 60 167 EtherNet/IP 200 48 24VDC - 1.5Nm
IVI060 0400BX100X M-S200 60 188 Modbus-RTU 400 48 24VDC - 1.5Nm
IVI060 0400BX100X C-S200 60 188 CANopen - programmable 400 48 24VDC - 1.5Nm
IVI060 0400BX100X C-S402 60 188 CANopen 400 48 24VDC - 1.5Nm
IVI060 0400BXX000 T-S200 60 188 Modbus TCP 400 48 24VDC - 1.5Nm
IVI060 0400BXX000 E-S402 60 188 EtherCAT 400 48 24VDC - 1.5Nm
IVI060 0400BX3000 P-S200 60 188 Profinet 400 48 24VDC - 1.5Nm
IVI060 0400BX3000 R-S402 60 188 PowerLink 400 48 24VDC - 1.5Nm
IVI060 0400BX3000 H-S200 60 188 EtherNet/IP 400 48 24VDC - 1.5Nm
