IBS057

Home   Products   >   Motors with integrated Controller   >   Brushless DC motors with Motion controller   >   IBS057

IBS057

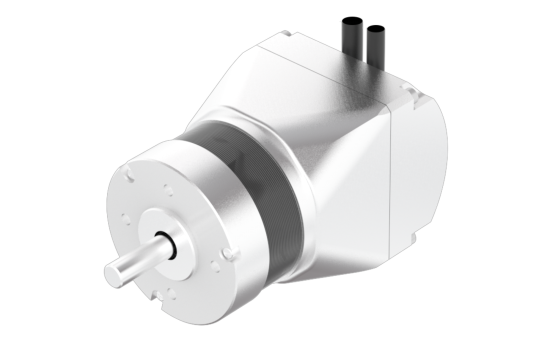

Our BLDC motors with integrated controller offer the compactness of a standard motor together with all the features of our drives. These motors have digital inputs and outputs and an analogue input, and can be also equipped with several Fieldbuses such as: CANopen, Modbus RTU, EtherCAT, Modbus TCP/IP, Profinet, EtherNet/IP, Powerlink. To reach top performances, a single turn magnetic encoder can also be fully integrated.


More about BLDC motors with Motion controller

IBS057
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
Analog
CANopen
CANopen - programmable
EtherCAT
EtherNet/IP
Modbus-RTU
Modbus TCP
PowerLink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Torque (Nm)
Rated Power (Watt)
Operating Voltage (Vdc)
IBS057 0022NE1000 A-S300 57 88 Analog 0.055 22 24-36
IBS057 0022NE1000 M-S200 57 88 Modbus-RTU 0.055 22 24-36
IBS057 0022NE1000 C-S200 57 88 CANopen - programmable 0.055 22 24-36
IBS057 0022NE1000 C-S402 57 88 CANopen 0.055 22 24-36
IBS057 0022NE1000 T-S200 57 93 Modbus TCP 0.055 22 24-36
IBS057 0022NE1000 E-S402 57 93 EtherCAT 0.055 22 24-36
IBS057 0022NE1000 P-S200 57 93 Profinet 0.055 22 24-36
IBS057 0022NE1000 R-S402 57 93 PowerLink 0.055 22 24-36
IBS057 0022NE1000 H-S200 57 93 EtherNet/IP 0.055 22 24-36
IBS057 0044NE1000 A-S300 57 98 Analog 0.11 44 24-36
IBS057 0044NE1000 M-S200 57 98 Modbus-RTU 0.11 44 24-36
IBS057 0044NE1000 C-S200 57 98 CANopen - programmable 0.11 44 24-36
IBS057 0044NE1000 C-S402 57 98 CANopen 0.11 44 24-36
IBS057 0044NE1000 T-S200 57 103 Modbus TCP 0.11 44 24-36
IBS057 0044NE1000 E-S402 57 103 EtherCAT 0.11 44 24-36
IBS057 0044NE1000 P-S200 57 103 Profinet 0.11 44 24-36
IBS057 0044NE1000 R-S402 57 103 PowerLink 0.11 44 24-36
IBS057 0044NE1000 H-S200 57 103 EtherNet/IP 0.11 44 24-36
IBS057 0088NE1000 A-S300 57 118 Analog 0.22 88 24-36
IBS057 0088NE1000 M-S200 57 118 Modbus-RTU 0.22 88 24-36
IBS057 0088NE1000 C-S200 57 118 CANopen - programmable 0.22 88 24-36
IBS057 0088NE1000 C-S402 57 118 CANopen 0.22 88 24-36
IBS057 0088NE1000 T-S200 57 123 Modbus TCP 0.22 88 24-36
IBS057 0088NE1000 E-S402 57 123 EtherCAT 0.22 88 24-36
IBS057 0088NE1000 P-S200 57 123 Profinet 0.22 88 24-36
IBS057 0088NE1000 R-S402 57 123 PowerLink 0.22 88 24-36
IBS057 0088NE1000 H-S200 57 123 EtherNet/IP 0.22 88 24-36
IBS057 0128NE1000 A-S300 57 138 Analog 0.33 128 24-36
IBS057 0128NE1000 M-S200 57 138 Modbus-RTU 0.33 128 24-36
IBS057 0128NE1000 C-S200 57 138 CANopen - programmable 0.33 128 24-36
IBS057 0128NE1000 C-S402 57 138 CANopen 0.33 128 24-36
IBS057 0128NE1000 T-S200 57 143 Modbus TCP 0.33 128 24-36
IBS057 0128NE1000 E-S402 57 143 EtherCAT 0.33 128 24-36
IBS057 0128NE1000 P-S200 57 143 Profinet 0.33 128 24-36
IBS057 0128NE1000 R-S402 57 143 PowerLink 0.33 128 24-36
IBS057 0128NE1000 H-S200 57 143 EtherNet/IP 0.33 128 24-36
IBS057 0168NE1000 A-S300 57 158 Analog 0.44 168 24-36
IBS057 0168NE1000 M-S200 57 158 Modbus-RTU 0.44 168 24-36
IBS057 0168NE1000 C-S200 57 158 CANopen - programmable 0.44 168 24-36
IBS057 0168NE1000 C-S402 57 158 CANopen 0.44 168 24-36
IBS057 0168NE1000 T-S200 57 163 Modbus TCP 0.44 168 24-36
IBS057 0168NE1000 E-S402 57 163 EtherCAT 0.44 168 24-36
IBS057 0168NE1000 P-S200 57 163 Profinet 0.44 168 24-36
IBS057 0168NE1000 R-S402 57 163 PowerLink 0.44 168 24-36
IBS057 0168NE1000 H-S200 57 163 EtherNet/IP 0.44 168 24-36
