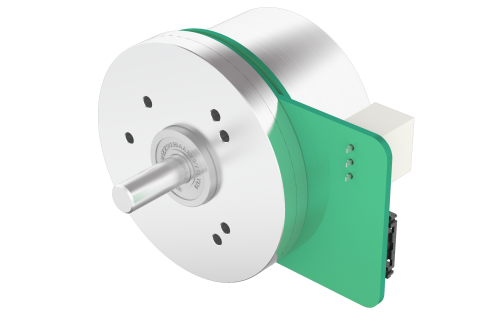

60BLW42-24V-E

60BLW42-24V-E

Size 60 mm  |  Length (L) 42 mm  |  Rated Voltage 24 Vdc  |  Rated Torque 0.29 Nm  |  Rated Speed 3500 rpm

Product Code: 60BLW42-24V-E.000

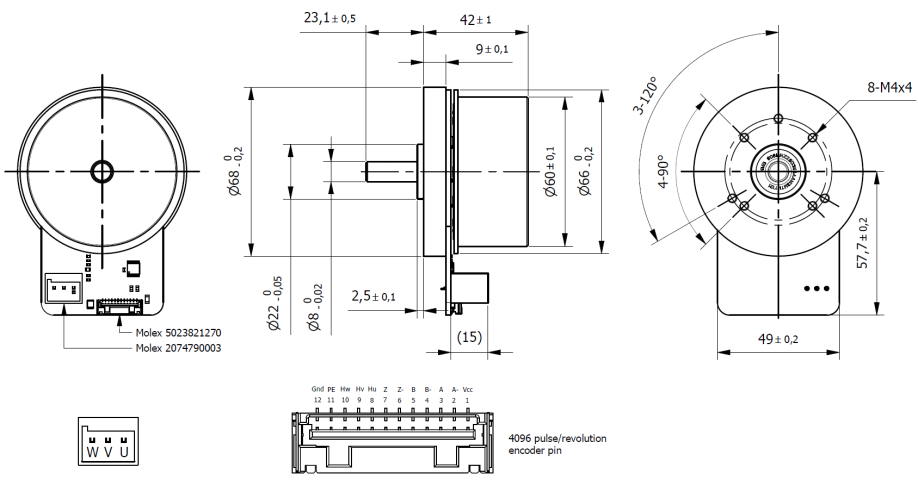

Technical Data Download Dimensions Combinations
Size60 mmLength (L)42 mm
Rated Voltage24 VdcRated Torque0.29 Nm
Rated Speed3500 rpmn° of Pole14
n° of Phase3 Max. Peak Torque0.87 Nm
Torque Constant0.05 Nm/ARated Current5.8 A
Max. Peak Current17 ANo-Load Current700 mA
Line to Line Resistance0.25 OhmLine to Line Inductance0.22 mH
Rotor Inertia1000 gcm2Weight0.5 Kg
Encoder4096 CPR magnetic incremental/ 3-channels Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Radial Play (max.4N)0.02 mm
Axial Play (max.4N)0.08 mmMax. Radial Force (10mm from flange)55 N
Max. Axial Force12 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 Mohm
