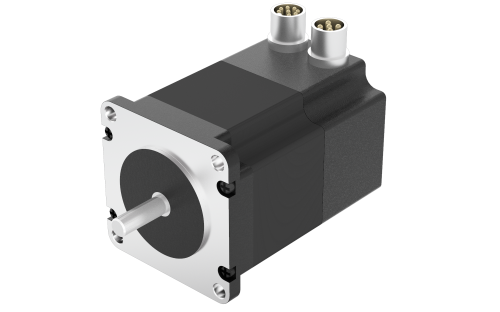

SM57 080E-IP65

SM57 080E-IP65

Product Code: SM57080E-IP65.000

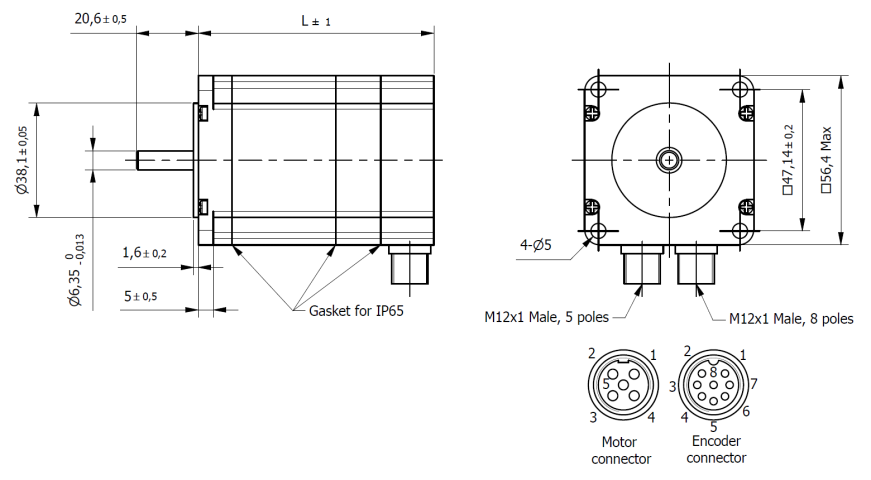

Technical Data Download Dimensions Combinations
Size57 mmNema23
Length (L)80 mmCurrent/Phase2.82 A
Holding Torque1.1 NmStep Angle1.8 °
Rated Voltage2.4 VdcResistance/Phase0.85 Ohm
Inductance/Phase2.5 mHRotor Inertia280 gcm2
Detent Torque0.036 NmN° of Leads4
Weight0.85 KgEncoderOptical - Incremental 500 CPR / 2 Channel
Step Angle accuracy± 5 %Insulation ClassB
Protection ClassIP65 Operating Temperature- 20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.03 Max mm
Axial Play (450g load)0.08 Max mmMax. Radial Force (on shaft end)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
