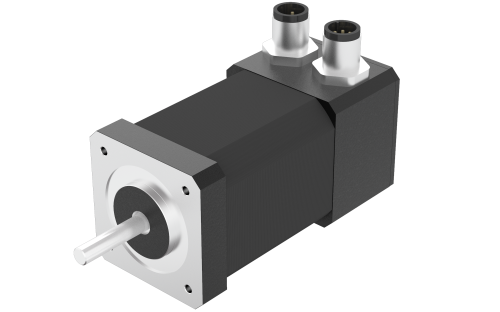

SM42 073E-IP65

SM42 073E-IP65

Product Code: SM42073E-IP65.000

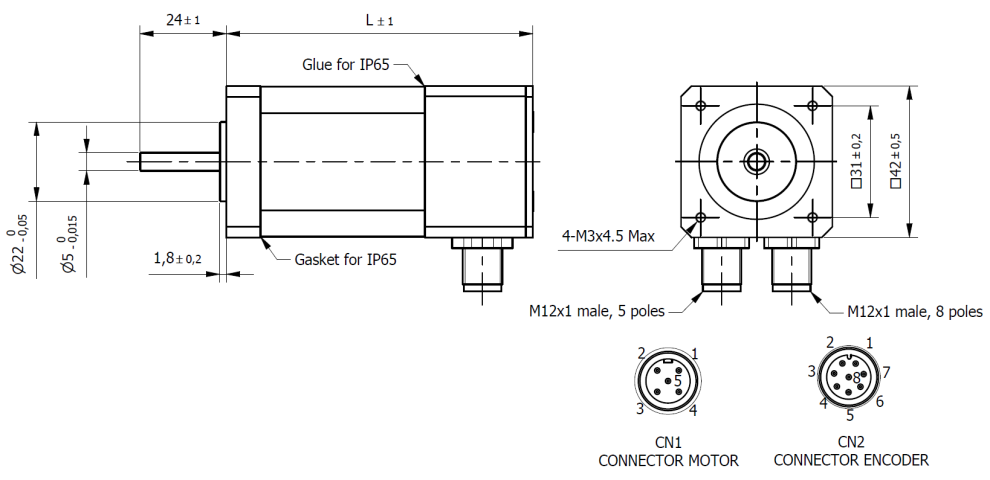

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)73 mmCurrent/Phase1.8 A
Holding Torque0.48 NmStep Angle1.8 °
Rated Voltage2.7 VdcResistance/Phase1.52 Ohm
Inductance/Phase3.7 mHRotor Inertia80 gcm2
Detent Torque0.012 NmN° of Leads4
Weight0.560 KgEncoderOptical - Incremental 1000 CPR / 2 Channel
Step Angle accuracy± 5 %Insulation ClassB
Protection ClassIP65 Operating Temperature- 20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 Max mm
Axial Play (450g load)0.08 Max mmMax. Radial Force (on shaft end)21 N
Max. Axial Force10 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
