Stepless Control Technology (65536 emulated positions per turn)
Protective functions
Over current, Over/Under Voltage, Overheating, Short circuit
Protection Class
IP20
Safety feature
Safe Torque Off (STO) SIL3/PLe
Pollution degree
2
Operating Temperature
+5 / +50°C
Humidity
5 - 85%
Digital Inputs
4 opto-coupled
Digital Outputs
3 opto-coupled
Encoder (standard)
Incremental 5V differential (RS422) or 5V Single-Ended (TTL/CMOS) or Absolute 5V SSI or BiSS-C
Technical Files
Datasheet

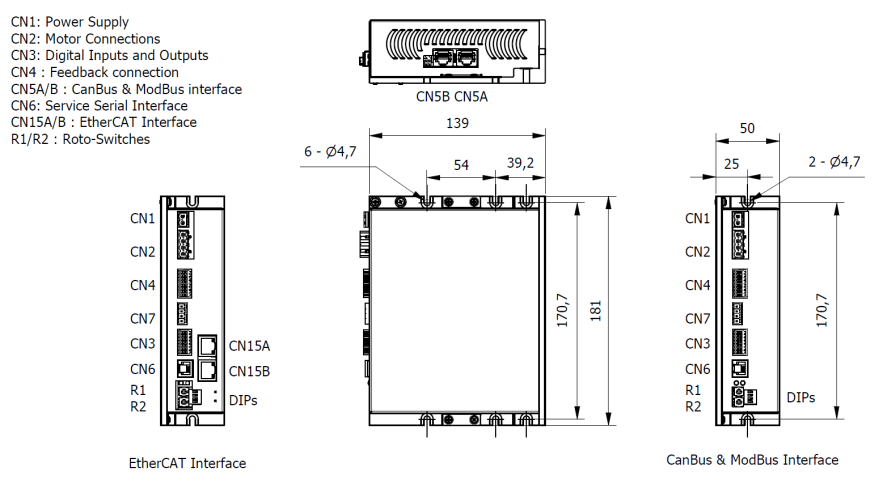

3D STP file
Short manual
Other documents
Declaration of conformity - Lyra
All motors and servomotors with Phase Current up to 3A rms.
Custom combinations are available on request. Contact us
DL Space
DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware.
The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions.
Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
Software
Manual
Service SCI Interface cable is required to use our Software and available on request.
Connector kit is not included but available on request.
