Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI080

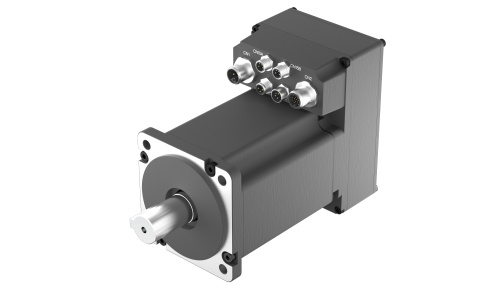

IVI080 1000NX100X M-S200

Size 80 mm | Length (L) 185 mm | Interface Modbus-RTU | Rated Power 1000 Watt | Rated Voltage 48 Vdc

Product Code: IVI0801000NX100XM-S200

Technical Data

Download

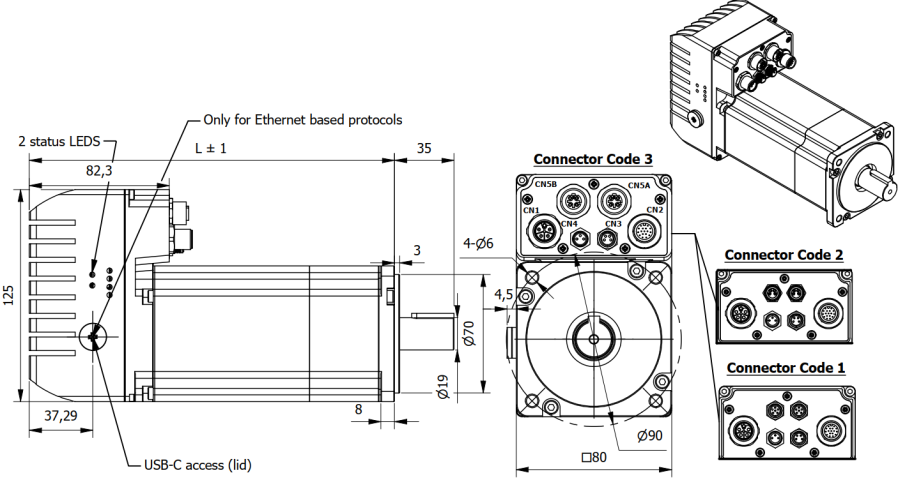

Dimensions

Combinations

Software

Accessories

Size	80 mm	Length (L)	185 mm
Interface	Modbus-RTU	Rated Power	1000 Watt
Rated Torque	3.18 Nm	Rated Current	28 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	9.54 Nm
Torque Constant	0.113 Nm/A	Max. Peak Current	84 A
No-Load Current	2000 mA	Back EMF constant	6.8 V/kRPM
Rotor Inertia	2220 gcm²	Weight	3.8 Kg
Shaft run out	0.05 mm	Insulation Class	F 155°C
Protection Class	IP65	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial force (at mid-shaft)	392 N
Max. Axial Force	147 N	Dielectric Strength (for 1min.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Optical Incremental 2500 CPR	Encoder Type - Optional	Magnetic Absolute (single-turn, BiSS): 17bit, 16bit
Protective functions	Over/Under voltage, Over current, Overheating, Short circuit	Safety feature	Safe Torque Off (STO) SIL3/PLe
Debug & configuration	Serial interface	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	2 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP
