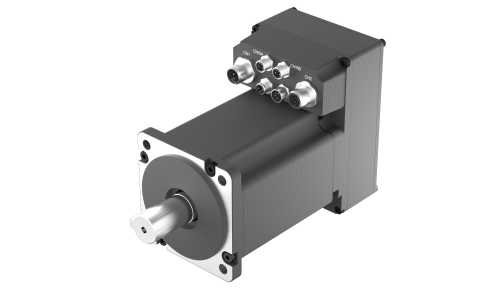

IVI080 with Brake

Home   Products   >   Motors with integrated Controller   >   BLDC Servo motors with Motion controller   >   IVI080 with Brake
IVI080 1000BXX000 E-S402

IVI080 1000BXX000 E-S402

Product Code: IVI0801000BXX000E-S402

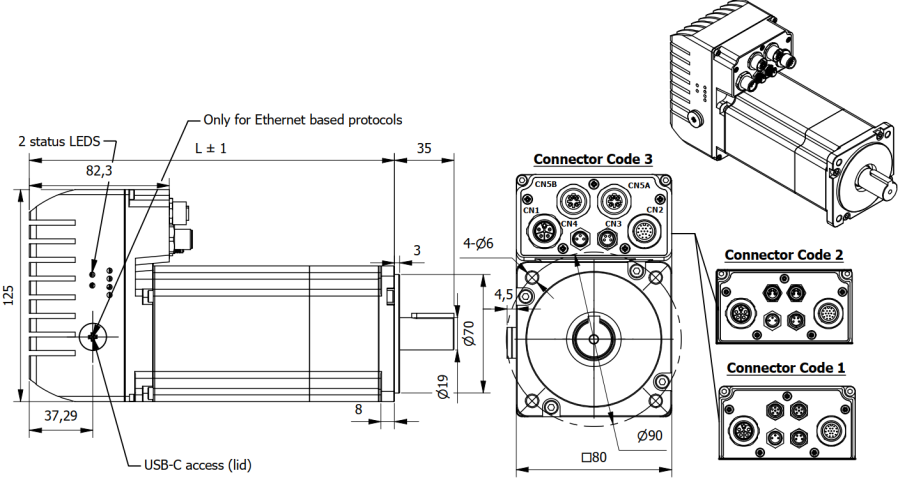

Technical Data Download Dimensions Combinations Software Accessories
Size80 mmLength (L)215 mm
InterfaceEtherCAT Rated Power1000 Watt
Rated Torque3.18 NmRated Current28 A
Rated Voltage48 Vdcn° of Pole10
Rated Speed3000 rpmMax. Peak Torque9.54 Nm
Torque Constant0.113 Nm/AMax. Peak Current84 A
No-Load Current2000 mABack EMF constant6.8 V/kRPM
Rotor Inertia2220 gcm2Brake24VDC - 3.2Nm
Weight4.39 KgShaft run out0.05 mm
Insulation ClassF 155°C Protection ClassIP65
Operating Temperature+5°C to +40°C Humidity5% to 85% not condensing
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial force (at mid-shaft)392 NMax. Axial Force147 N
Dielectric Strength (for 1min.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating modePosition, Speed, Torque Encoder Type - StandardOptical Incremental 2500 CPR
Encoder Type - OptionalMagnetic Absolute (single-turn, BiSS): 17bit, 16bit Protective functionsOver/Under voltage, Over current, Overheating, Short circuit
Safety featureSafe Torque Off (STO) SIL3/PLe Debug & configurationSerial interface
Digital Inputs4 not isolated 5-24 Vdc PNP Analog Inputs2 not isolated | 0-10 Vdc
Digital Outputs2 not isolated 24 Vdc PNP
