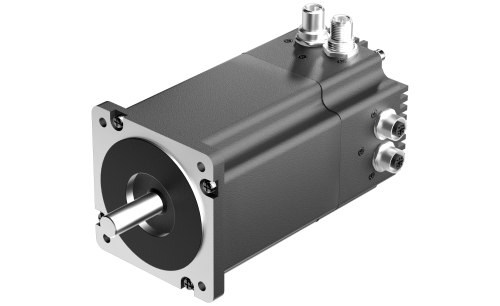

ISI086 0156NE2000 E-S402

Product Code: ISI0860156NE2000E-S402

Technical Data

Download

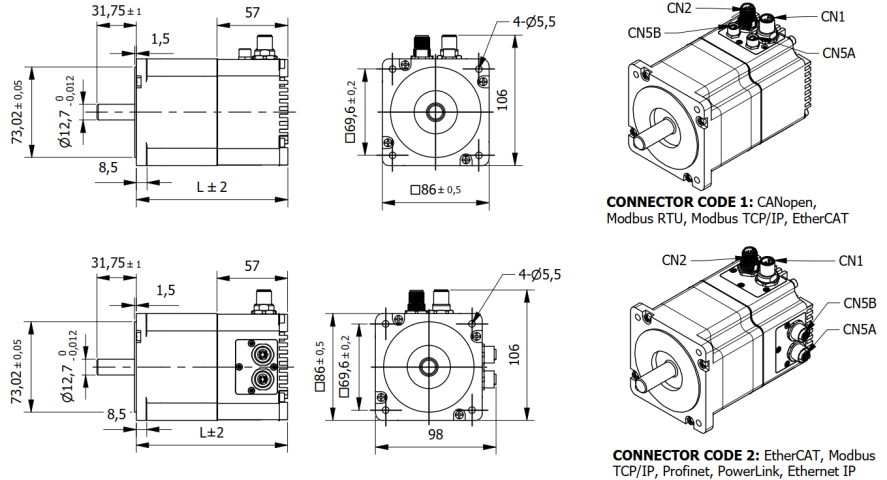

Dimensions

Combinations

Software

Accessories

Size	86 mm	Length (L)	156 mm
Interface	EtherCAT	Holding Torque	7 Nm
Current/Phase	5.5 A	Operating Voltage	12-48 Vdc
Resistance/Phase	0.47 Ohm	Inductance/Phase	4.5 mH
Rotor Inertia	2700 gcm²	Detent Torque	0.12 Nm
Weight	3.29 Kg	Step Angle	1.8 °
Step Angle accuracy	±5 %	Protection Class	IP65
Operating Temperature	+5°C +40°C	Humidity	5% to 85% not condensing
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	220 N
Max. Axial Force	60 N	Dielectric Strength (for 1min.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental 4096 CPR or Absolute Single turn encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface (not for M-C)	Digital Inputs	4 not isolated 5-24Vdc PNP
Analog Inputs	2 with potentiometer or 0-10Vdc not isolated	Digital Outputs	2 not isolated open drain, 5-24Vdc 100mA
