Home Products > Motors with integrated Controller > Stepper motors with Motion controller > ISI057 -IP65

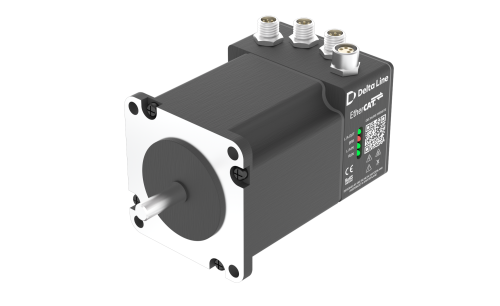

ISI057 0073NE100X C-S200

Size 57 mm | Length (L) 73 mm | Interface CANopen - programmable | Holding Torque 0.55 Nm | Current/Phase 3 A | Operating Voltage 12-48 Vdc

Product Code: ISI0570073NE100XC-S200

Technical Data

Download

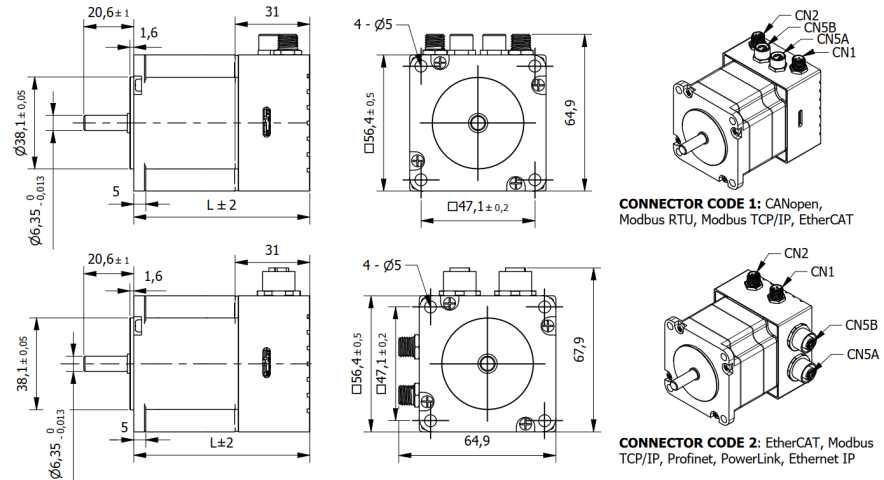

Dimensions

Combinations

Software

Accessories

Size	57 mm	Length (L)	73 mm
Interface	CANopen - programmable	Holding Torque	0.55 Nm
Current/Phase	3 A	Operating Voltage	12-48 Vdc
Resistance/Phase	0.7 Ohm	Inductance/Phase	1.4 mH
Rotor Inertia	120 gcm²	Detent Torque	0.021 Nm
Weight	0.56 Kg	Step Angle	1.8 °
Step Angle accuracy	±5 %	Protection Class	IP65
Operating Temperature	+5°C +40°C	Humidity	5% to 85% not condensing
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Magnetic Incremental 4096 CPR or Absolute Single turn encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	Serial Interface (not for M-C)	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	1 with potentiometer or 0-10 Vdc	Digital Outputs	2 not isolated open drain, 5-24 Vdc 100 mA
