Home Products > Motors with integrated Controller > Brushless DC motors with Motion controller > IBS080

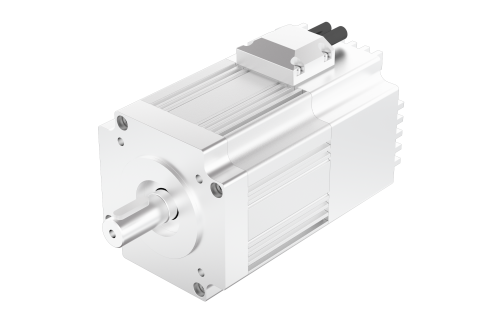

IBS080 0362NE1000 M-S200

Product Code: IBS0800362NE1000M-S200

Technical Data

Download

Combinations

Software

Accessories

Size	80 mm	Length (L)	130 mm
Interface	Modbus-RTU	Rated Torque	1.13 Nm
Rated Power	362 Watt	Rated Current	13.3 A
Operating Voltage	24-48 Vdc	n° of Pole	8
Rated Voltage	40 Vdc	Rated Speed	3210 rpm
Max. Peak Torque	3.4 Nm	Torque Constant	0.085 Nm/A
Max. Peak Current	40 A	No-Load Current	600 mA
Rotor Inertia	680 gcm²	Weight	2.3 Kg
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP54	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.04 mm
Axial Play (450g load)	0.08 mm	Max. Radial force (at mid-shaft)	330 N
Max. Axial Force	764 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Speed, Torque
Encoder Type - Standard	Magnetic Incremental encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	CAN/RS485 Interface	Digital Inputs	4 not isolated 24 Vdc PNP
Analog Inputs	1 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP

Need help?
Talk to our experts

Contact us

Switzerland - Global HQ

Via Prè d’là, 1
CH-6814 Lamone, Switzerland
Phone: +41 (0)91 612 85 00
Fax: +41 (0)91 612 85 19
E-mail: info@delta-line.com

USA

Delta Line North America, Inc
4600 South Syracuse, 9th Floor
Denver, CO 80237, USA
Phone: +1 303 256 6212
E-mail: infous@delta-line.com

China

Changzhou Delta Line Trade
Company Limited,
414 Building 1,
FuChen HuaYuan
New North District Changzhou,
Jiangsu, China

Follow

Privacy & cookie Policy

Legal Notes

Sitemap

EN DE FR IT

		DL Space DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware. The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions. Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
		Software Manual
