Over current, over/under voltage, overheating, short circuit
Debug & configuration
Serial Interface
Encoder Type - Standard
Magnetic Incremental encoder
Digital Inputs
4 not isolated 5-24 Vdc PNP
Digital Outputs
2 not isolated 24 Vdc
Technical Files
Datasheet

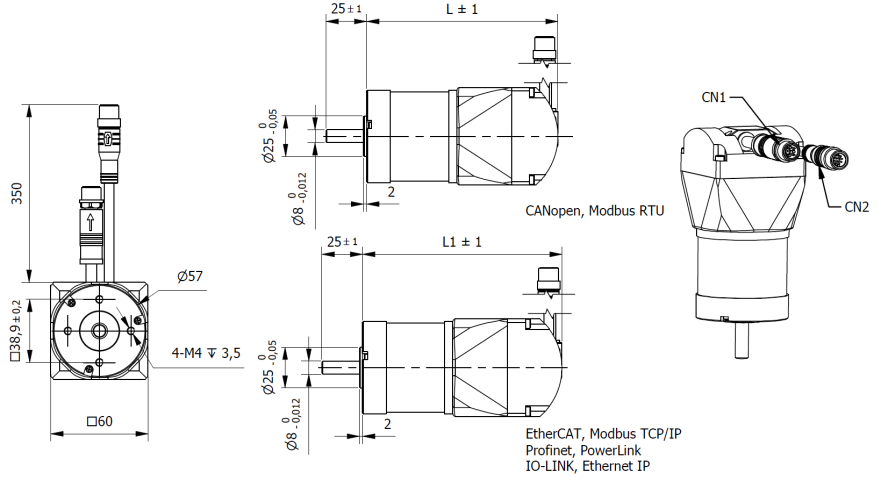

3D STP file
Custom combinations are available on request. Contact us
Gearboxes
GP56 -S
Planetary gearboxes - GP series
Size (mm)
56
Length (L) (mm)
50,6 - 67,8
Reduction Ratio
3,293 - 62,326
Nominal Output Torque (Nm)
7,73 - 26,48
Max. Input Speed (rpm)
4658 - 13000
GP56 -N - Low noise
Planetary gearboxes - GP series
Size (mm)
56
Length (L) (mm)
56 - 73
Reduction Ratio
3,24 - 35,05
Nominal Output Torque (Nm)
1,53 - 15,84
Max. Input Speed (rpm)
5450 - 9758
GP56 -T - Torque
Planetary gearboxes - GP series
Size (mm)
56
Length (L) (mm)
54,8 - 86
Reduction Ratio
3,293 - 256,23
Nominal Output Torque (Nm)
7,73 - 35
Max. Input Speed (rpm)
4658 - 13000
56JMS
Planetary gearboxes - JMS series
Size (mm)
56
Length (L) (mm)
37,8 - 60,8
Reduction Ratio
3,6 - 76,77
Nominal Output Torque (Nm)
9 -30
DL Studio
DL Studio is a PC Window program that allows the configuration and debugging of all stepper and brushless motor and drives. Easy and intuitive, DL Studio allows users to configure of all the main operating parameters through guided procedures, real-time monitoring of all the operating parameters and allowing access to the alarm history memory.
With DL Studio it is possible to create configuration profiles and save them to your PC to be downloaded in each new drive depending on the needs of the application. In addition, it also allows you to update the firmware version of our drives.
Software
Manual
Service SCI Interface cable is required to use our Software and available on request.
Connector kit is not included but available on request.
