Over current, over/under voltage, overheating, short circuit
Debug & configuration
Serial Interface
Digital Inputs
3 not isolated 5-24 Vdc NPN or Push Pull
Analog Inputs
1 with potentiometer or 0-10 Vdc
Digital Outputs
2 not isolated, open drain, 5 - 24 Vdc 100 mA
Technical Files
Datasheet

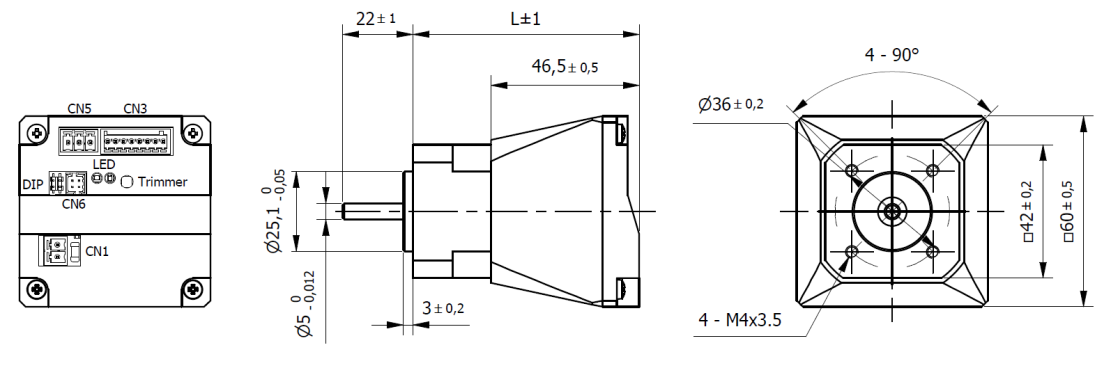

3D STP file
Custom combinations are available on request. Contact us
Gearboxes
GP42 -S
Planetary gearboxes - GP series
Size (mm)
42
Length (L) (mm)
42,7 - 70,6
Reduction Ratio
3,931 - 240,545
Nominal Output Torque (Nm)
2,88 - 19
Max. Input Speed (rpm)
8236 - 18000
42JMS
Planetary gearboxes - JMS series
Size (mm)
42
Length (L) (mm)
31,5 - 52,5
Reduction Ratio
3,71 - 138,99
Nominal Output Torque (Nm)
3 -10
DL Space
DL Space is the innovative visual programming environment for our drivers. This software does not require the learning of a text language but, through a graphic programming and guided windows, it allows the creation of multitasking programs exploiting all the functionalities of the DL drives with S200 firmware.
The programs realized with DL Space allow to exploit all the low-level control modes of our programmable drives for both brushless and stepper motors, including multiple homing modes, the electric shaft, the electronic range and many other functions.
Application debugging can be carried out quickly and easily thanks to the dedicated windows that include a virtual oscilloscope to monitor the actual motor movements.
Software
Manual
Service SCI Interface cable is required to use our Software and available on request.
