Home Products > Motors with integrated Controller > Brushless DC motors with Motion controller > IBI080-IP65

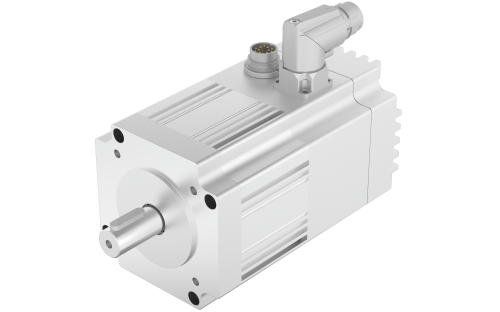

IBI080 0290NE1000 C-S402

Product Code: IBI0800290NE1000C-S402

Technical Data

Download

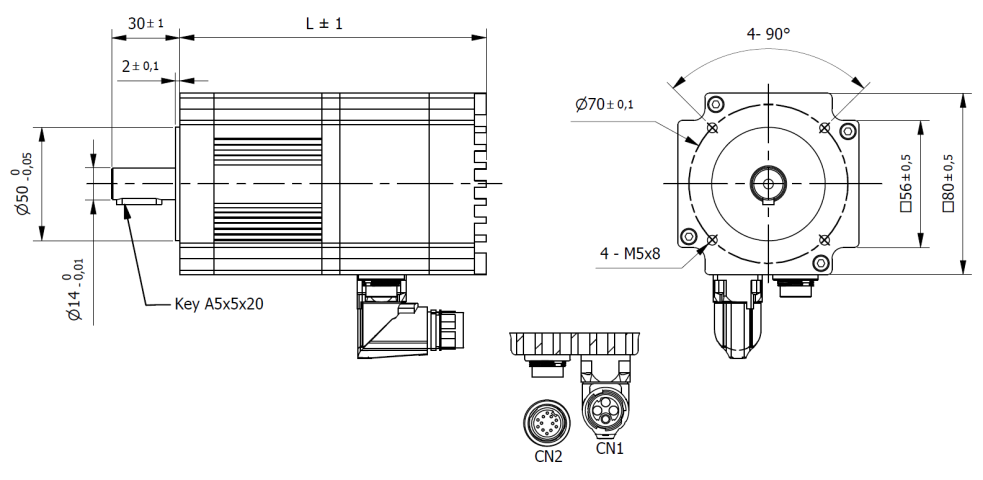

Dimensions

Combinations

Software

Accessories

Size	80 mm	Length (L)	135 mm
Interface	CANopen	Rated Torque	0.8 Nm
Rated Power	290 Watt	Rated Current	10 A
Operating Voltage	24-48 Vdc	n° of Pole	8
Rated Voltage	40 Vdc	Rated Speed	3210 rpm
Max. Peak Torque	2.4 Nm	Torque Constant	0.094 Nm/A
Max. Peak Current	30 A	No-Load Current	700 mA
Rotor Inertia	680 gcm²	Weight	2.15 Kg
Shaft run out	0.05 mm	Insulation Class	F
Protection Class	IP65	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.04 mm
Axial Play (450g load)	0.08 mm	Max. Radial force (at mid-shaft)	330 N
Max. Axial Force	764 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Speed, Torque
Encoder Type - Standard	Magnetic Incremental encoder	Protective functions	Over current, over/under voltage, overheating, short circuit
Debug & configuration	CAN/RS485 Interface	Digital Inputs	4 not isolated 24 Vdc PNP
Analog Inputs	1 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP
