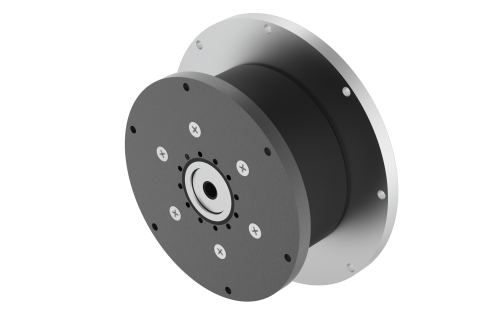

GPW56 S1-4.2

GPW56 S1-4.2

Max. load on wheel (radial load) 75 kg  |  Reduction Ratio 4.2   |  Nominal Output Torque 18.15 Nm  |  Max. Output Torque 36.3 Nm  |  Recommended Input Speed 3500 rpm  |  Max. Input Speed 6589 rpm

Product Code: GPW56-S1-4.2

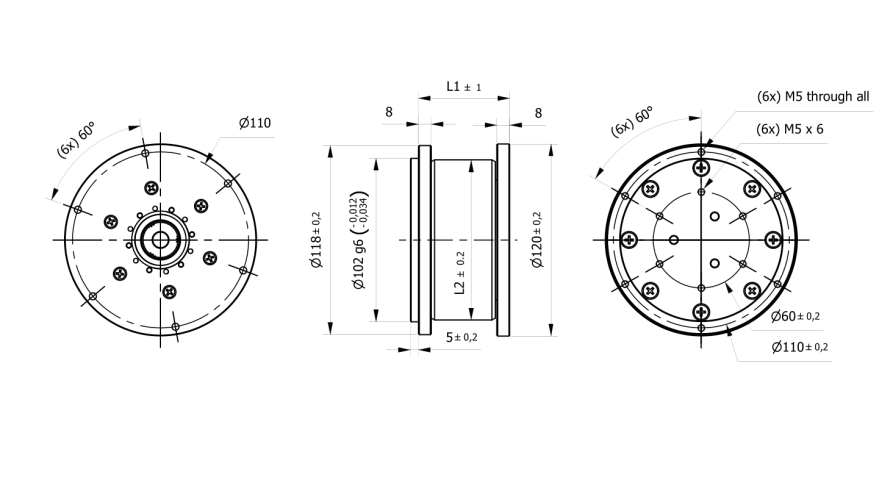

Technical Data Download Dimensions
Max. load on wheel (radial load)75 kgStages1
Reduction Ratio4.2 Nominal Output Torque18.15 Nm
Max. Output Torque36.3 NmRecommended Input Speed3500 rpm
Max. Input Speed6589 rpmEfficiency92 %
Length (L1)49 mmLength (L2)90 mm
Weight2.5 KgBacklash at 2% nominal output torque≤30 °
Protection classIP44 (optional IP54) Operating Temperature-15°C +90°C
