Series
GP
Size
80 mm
Length (L)
129 mm
Stages
2
Reduction Ratio
20.444
Nominal Output Torque
57 Nm
Max. Input Speed
4342 rpm
Recommended Input Speed
3000 rpm
Max. Output Torque
114 Nm
Efficiency
85 %
Moment of Inertia
(≤φ15) 83.39 kgmm
2
Weight
2600 g
Backlash at 2% nominal output torque
≤1 °
Press-Fit Max.
1500 N
Noise level
≤60 dB
Operating Temperature
-15°C +90°C
Protection Class
IP54
Bearing output
Ball Bearings
Technical Files
Datasheet
3D STP file
Home
Products
>
Gearboxes
>
Planetary gearboxes
>

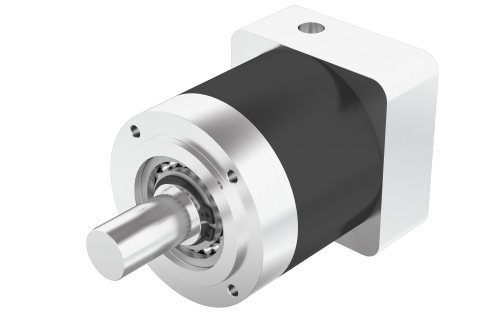

GP80 -T - Torque
GP80-T2-20.4
Product Code: GP80-T2-20.44.000
Technical Data
Download

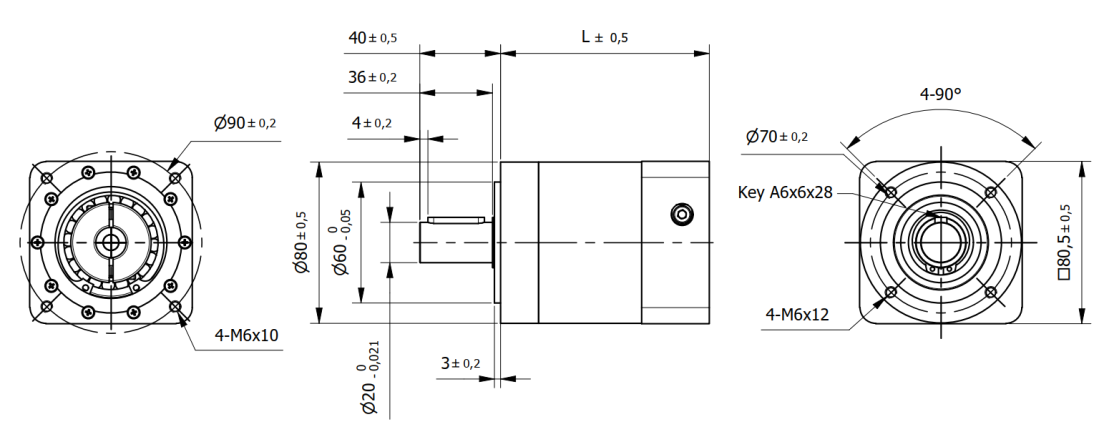

Dimensions
Series
GP
Size
80 mm
Length (L)
129 mm
Stages
2
Reduction Ratio
20.444
Nominal Output Torque
57 Nm
Max. Input Speed
4342 rpm
Recommended Input Speed
3000 rpm
Max. Output Torque
114 Nm
Efficiency
85 %
Moment of Inertia
(≤φ15) 83.39 kgmm
2
Weight
2600 g
Backlash at 2% nominal output torque
≤1 °
Press-Fit Max.
1500 N
Noise level
≤60 dB
Operating Temperature
-15°C +90°C
Protection Class
IP54
Bearing output
Ball Bearings
