Home Products > Gearboxes > Planetary gearboxes > GP42 -S

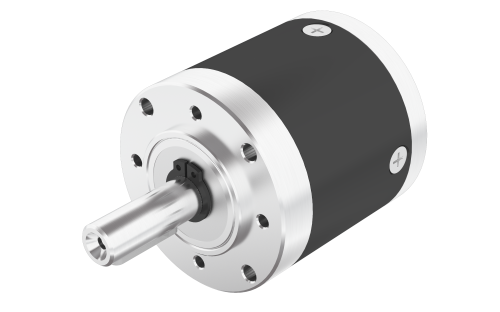

GP42-S1-7.1

Product Code: GP42-S1-7.07.000

Technical Data

Download

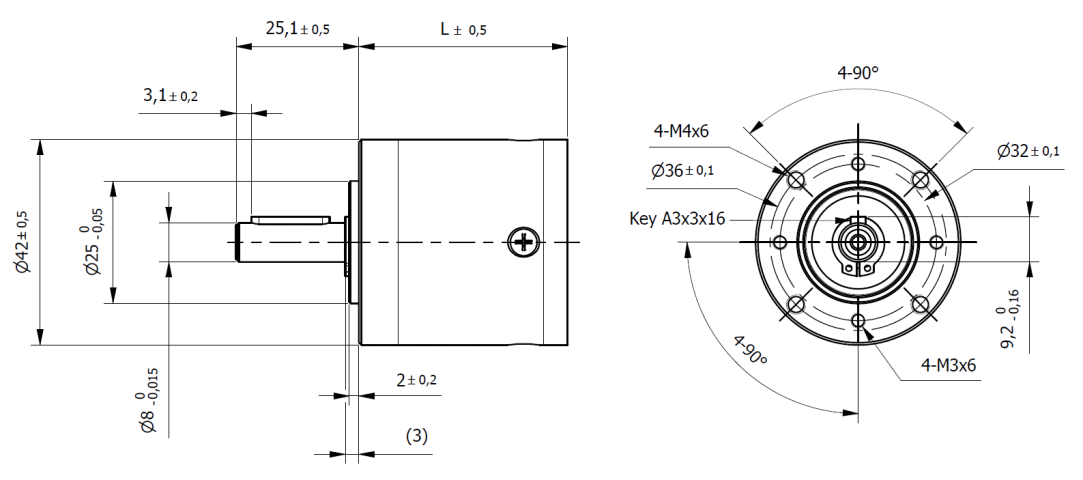

Dimensions

Series	GP	Size	42 mm
Length (L)	42.7 mm	Stages	1
Reduction Ratio	7.07	Nominal Output Torque	7.3 Nm
Max. Input Speed	17061 rpm	Max. Output Torque	14.6 Nm
Recommended Input Speed	3000 rpm	Efficiency	90 %
Moment of Inertia	(≤φ6.35) 0.56 kgmm²	Weight	300 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	320 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
