Home Products > Encoders > Incremental Optical Encoder > E4T - 2 channels

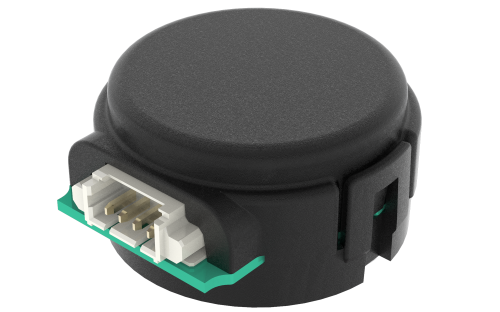

E4T-400 Optical

Cycles per revolution 400 CPR | Number of channels 2 | Supply Voltage 5±10% V

Product Code: E4T-400

Technical Data

Download

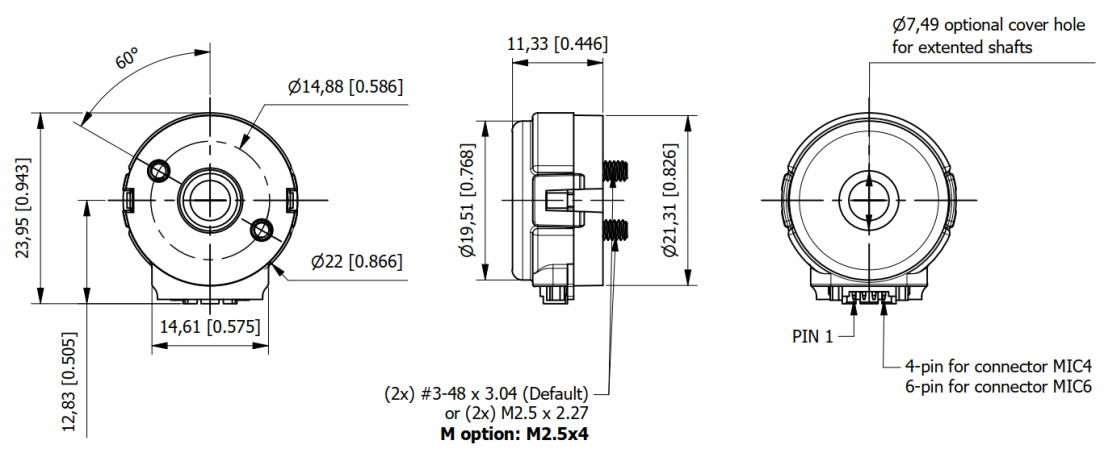

Dimensions

Cycles per revolution	400 CPR	Number of channels	2
Supply Voltage	5±10% V	Max. Frequency	100 kHz
Max. Speed	15000 rpm	Supply Current (CPR ≤500 no-load)	27-32 mA
Supply Current (CPR >500 no-load)	36-44 mA	Low Level Output	0.6 Vmax
High Level Output	4.75 Vmin	Output Rise Time	20 ns
Output Fall Time	20 ns	Phase Shift	90±60 °e
Operating Temperature	-20° to 100° °C	Max. Shaft Axial Play	±0.254 mm
Max. Shaft Run Out	0.05 T.I.R. mm	Max. Acceleration	25000 rad/s²
Codewheel Moment of Inertia	0.036 gcm²	Min. Shaft Length	6.985 mm
Max. Shaft Length	10 mm
