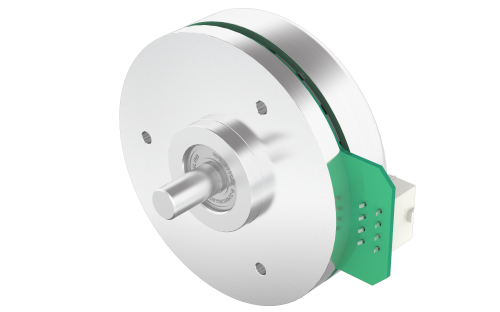

90BLW
90BLW40
Product Code: 90BLW40.000
Technical Data
Download

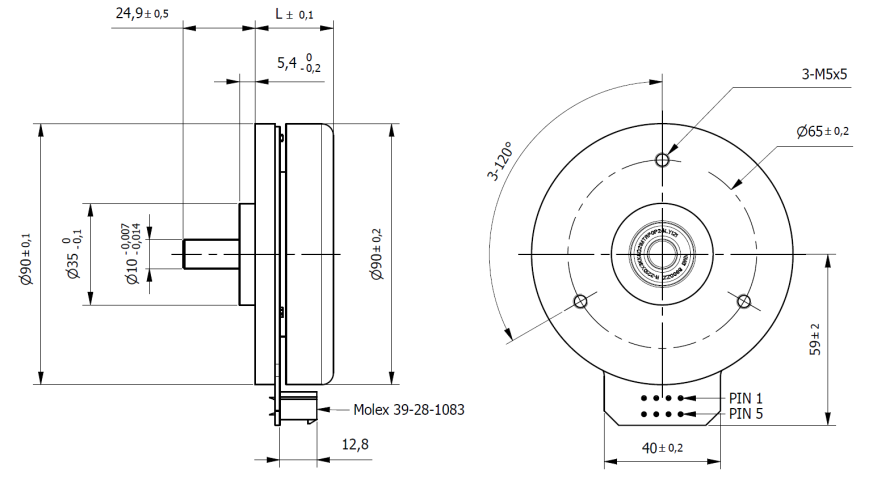

Dimensions
Combinations
Size
90 mm
Length (L)
40 mm
Rated Voltage
48 Vdc
Rated Torque
0.964 Nm
Rated Speed
1670 rpm
n° of Pole
22
n° of Phase
3
Max. Peak Torque
3 Nm
Torque Constant
0.24 Nm/A
Rated Current
4 A
Max. Peak Current
13 A
No-Load Current
280 mA
Line to Line Resistance
0.65 Ohm
Line to Line Inductance
0.9 mH
Rotor Inertia
5000 gcm
2
Weight
1 Kg
Hall Effect Angle
120 °
Shaft run out
0.05 mm
Insulation Class
B
Protection Class
IP40
Radial Play (450g load)
0.02 mm
Axial Play (450g load)
0.08 mm
Max. Radial Force (10mm from flange)
110 N
Max. Axial Force
45 N
Dielectric Strength (for 1min.)
500 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
