90BLW27-36V

90BLW27-36V

Size 90 mm  |  Length (L) 27 mm  |  Rated Voltage 36 Vdc  |  Rated Torque 0.56 Nm  |  Rated Speed 2540 rpm

Product Code: 90BLW27-36V.000

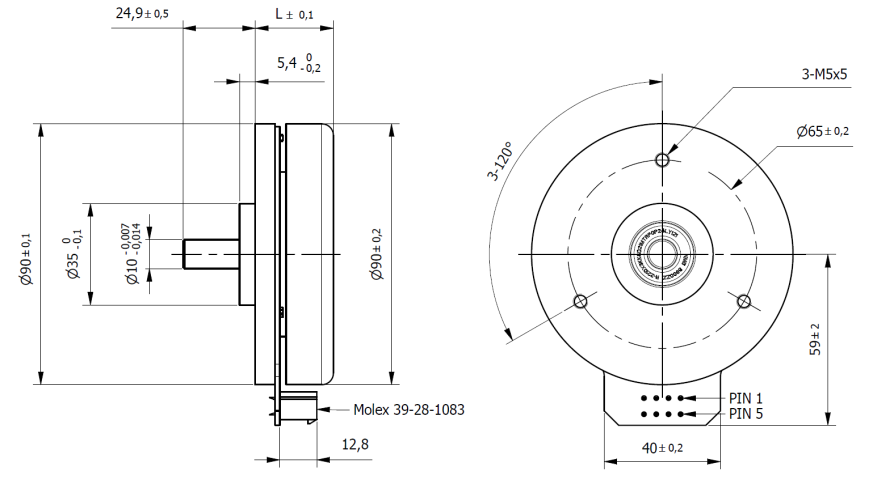

Technical Data Download Dimensions Combinations
Size90 mmLength (L)27 mm
Rated Voltage36 VdcRated Torque0.56 Nm
Rated Speed2540 rpmn° of Pole22
n° of Phase3 Max. Peak Torque1.8 Nm
Torque Constant0.11 Nm/ARated Current5.09 A
Max. Peak Current14.5 ANo-Load Current420 mA
Line to Line Resistance0.5 OhmLine to Line Inductance0.5 mH
Rotor Inertia3000 gcm2Weight0.6 Kg
Hall Effect Angle120 °Shaft run out0.05 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)110 NMax. Axial Force45 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
