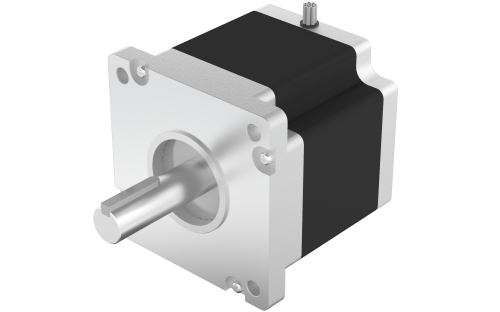

86SH96-5504A

86SH96-5504A

Product Code: 86SH96-5504A.000
Buy online:
RS logo

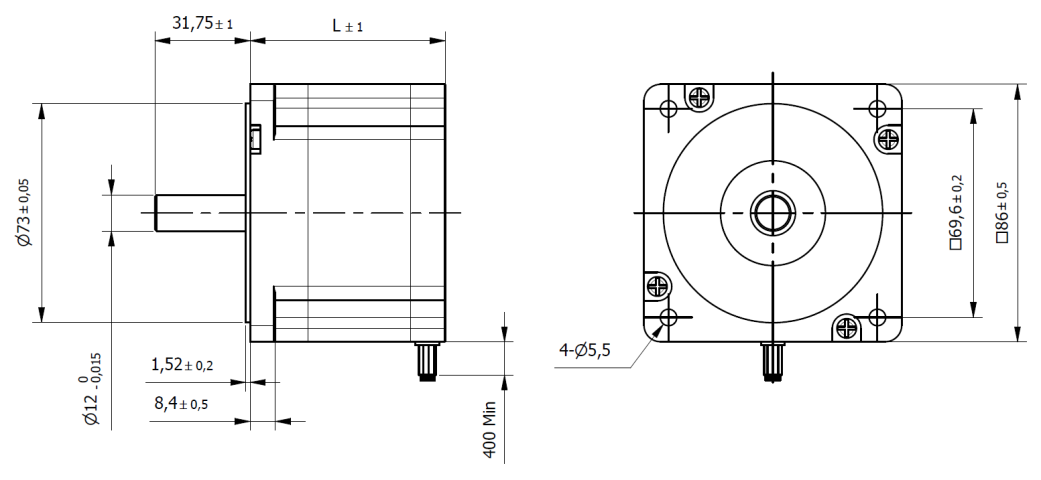

Technical Data Download Dimensions Combinations
SeriesSH Size86 mm
Nema34 Length (L)96 mm
Current/Phase5.5 AHolding Torque7 Nm
Step Angle1.8 °Rated Voltage2.56 Vdc
Resistance/Phase0.465 OhmInductance/Phase4.5 mH
Rotor Inertia2700 gcm2Detent Torque0.000 Nm
N° of Leads4 Weight2.8 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)220 N
Max. Axial Force60 NDielectric Strength (for 1min.)750 VAC
Insulation Resistance (min.500 VDC)100 Mohm
