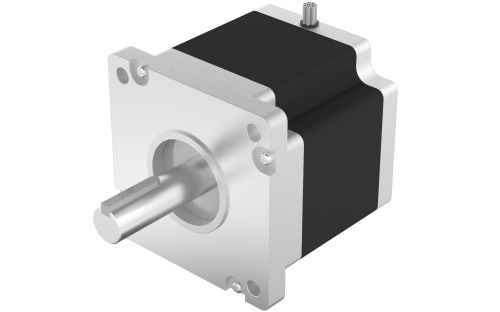

86SH80-5504A

86SH80-5504A

Series SH   |  Size 86 mm  |  Nema 34   |  Length (L) 80 mm  |  Current/Phase 5.5 A  |  Holding Torque 4.6 Nm  |  Step Angle 1.8 °

Product Code: 86SH80-5504A.000
Buy online:
RS logo

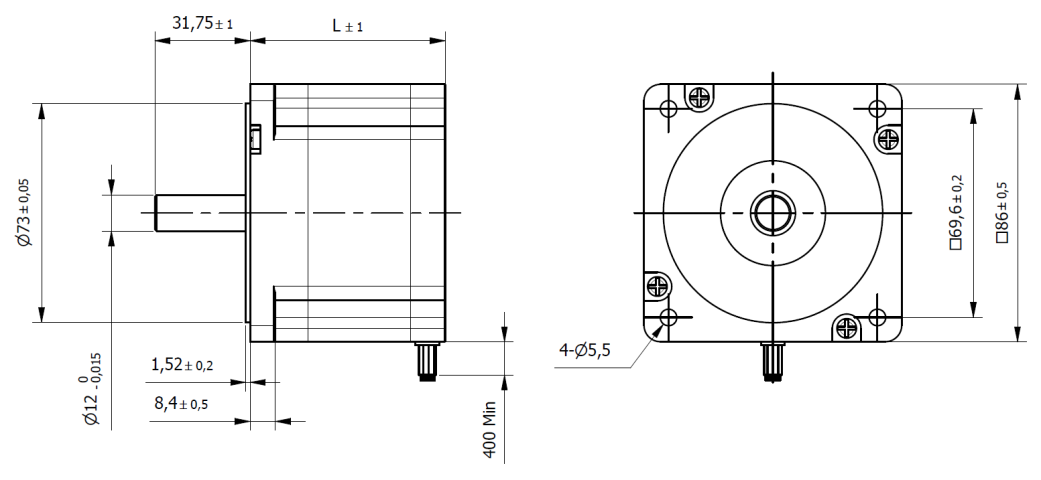

Technical Data Download Dimensions Combinations
SeriesSH Size86 mm
Nema34 Length (L)80 mm
Current/Phase5.5 AHolding Torque4.6 Nm
Step Angle1.8 °Rated Voltage2.3 Vdc
Resistance/Phase0.42 OhmInductance/Phase3.5 mH
Rotor Inertia1400 gcm2Detent Torque0.118 Nm
N° of Leads4 Weight2.3 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)220 N
Max. Axial Force60 NDielectric Strength (for 1min.)750 VAC
Insulation Resistance (min.500 VDC)100 Mohm
