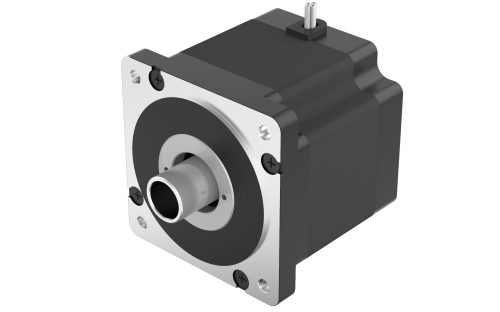

86SH118-4208A-H

86SH118-4208A-H

Product Code: 86SH118-4208A-H.000

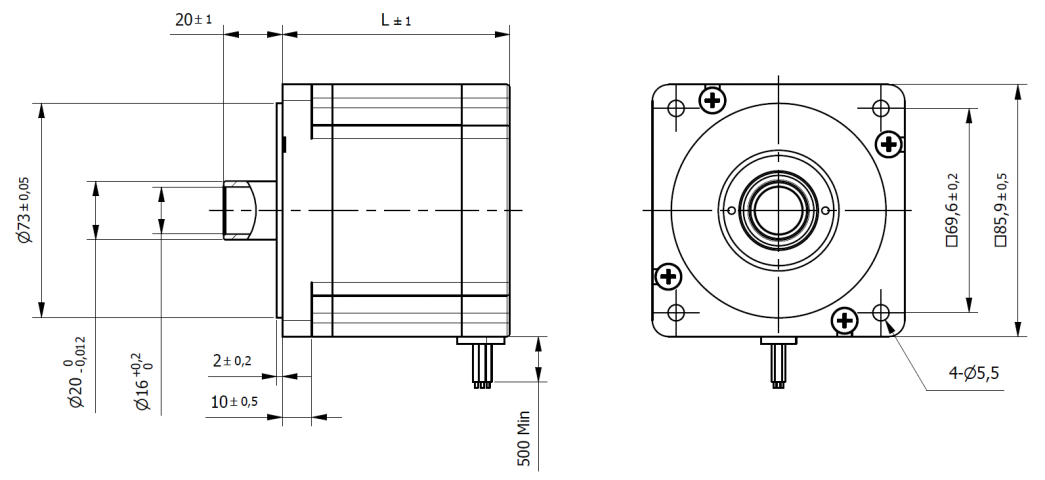

Technical Data Download Dimensions Combinations
Size86 mmNema34
Length (L)114 mmCurrent/Phase4.2 A
Holding Torque6 NmStep Angle1.8 °
Rated Voltage5 VdcResistance/Phase1.2 Ohm
Inductance/Phase6.5 mHRotor Inertia2700 gcm2
Detent Torque0,24 NmN° of Leads4
Weight3.8 KgStep Angle accuracy±5 %
Insulation ClassB Protection ClassIP30
Operating Temperature-20°C +50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Radial Play (450g load)0,02 mmAxial Play (450g load)0,08 mm
Max. Radial Force (20mm from flange)130 NMax. Axial Force36 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
