86SC

Home   Products   >   Stepper motors   >   Stepper motors with Encoder   >   86SC

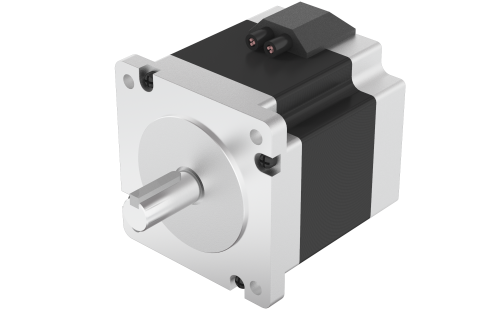

86SC97

86SC97

Product Code: 86SC97-5504E4K.000

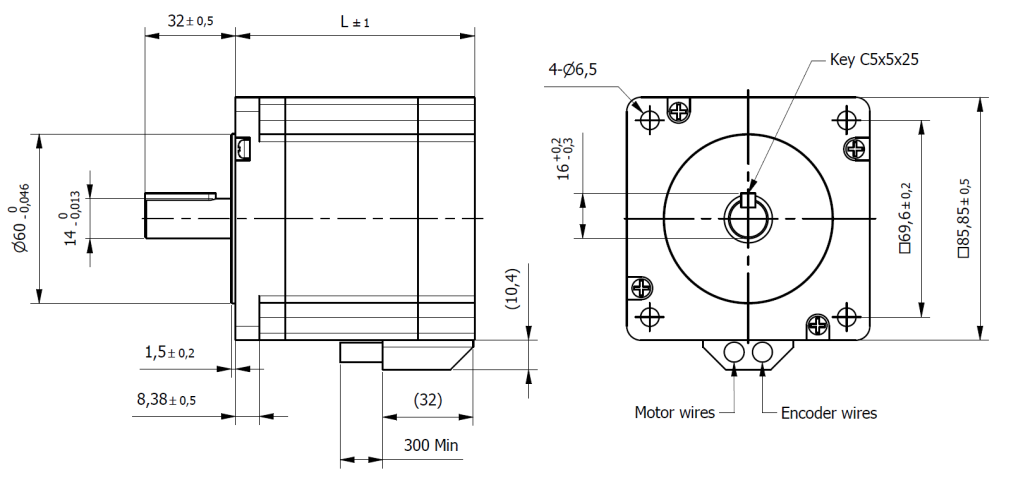

Technical Data Download Dimensions Combinations
Size86 mmNema34
Length (L)97 mmCurrent/Phase5.5 A
Holding Torque4.6 NmStep Angle1.8 °
Rated Voltage2.3 VdcResistance/Phase0.42 Ohm
Inductance/Phase3.5 mHRotor Inertia1400 gcm2
Detent Torque0.12 NmN° of Leads4
Weight2.3 KgEncoderOptical - Incremental 1000 CPR / 2 Channel
Step Angle accuracy± 5 %Insulation ClassB
Protection ClassIP20 Operating Temperature- 20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)80°C Max °CRadial Play (450g load)0.02 Max mm
Axial Play (450g load)0.08 Max mmMax. Radial Force (20mm from flange)220 N
Max. Axial Force60 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
