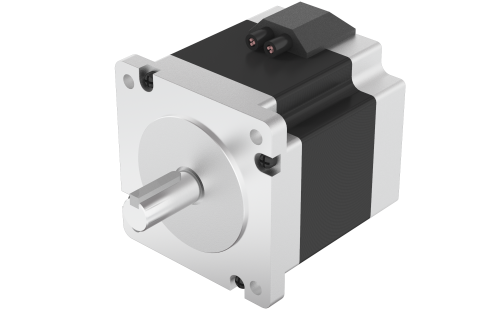

86SC133 86SC | Delta Line

86SC133

86SC133

Size 86 mm  |  Nema 34   |  Length (L) 133 mm  |  Current/Phase 6 A  |  Holding Torque 8.7 Nm  |  Step Angle 1.8 °

Product Code: 86SC133-6004E4K.000

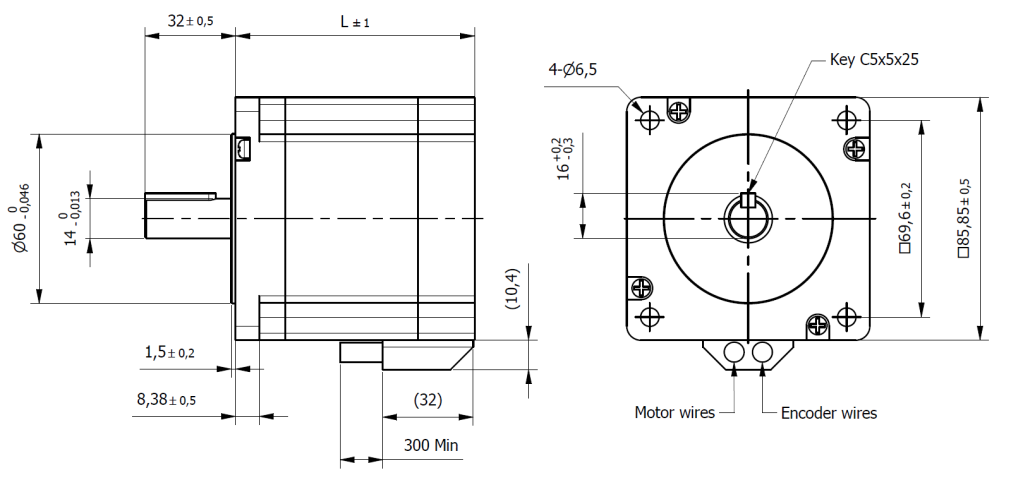

Technical Data Download Dimensions Combinations
Size86 mmNema34
Length (L)133 mmCurrent/Phase6 A
Holding Torque8.7 NmStep Angle1.8 °
Rated Voltage3.3 VdcResistance/Phase0.45 Ohm
Inductance/Phase5.1 mHRotor Inertia2700 gcm2
Detent Torque0.24 NmN° of Leads4
Weight3.8 KgEncoderOptical - Incremental 1000 CPR / 2 Channel
Step Angle accuracy± 5 %Insulation ClassB
Protection ClassIP20 Operating Temperature- 20°C + 50°C
Max. Temp. Rise (rated current, 2-phase on)80°C Max °CRadial Play (450g load)0.02 Max mm
Axial Play (450g load)0.08 Max mmMax. Radial Force (20mm from flange)220 N
Max. Axial Force60 NDielectric Strength (for 1min.)750 VAC
Insulation Resistance (min.500 VDC)100 Mohm
