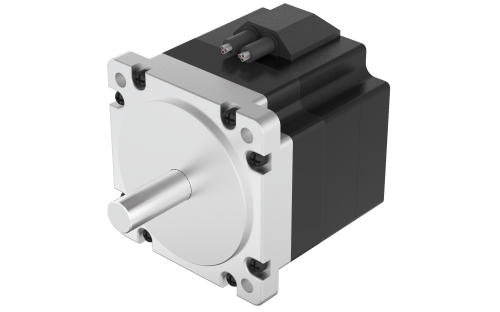

80SVA01

80SVA01

Size 80 mm  |  Length (L) 86 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 0.9 Nm  |  Rated Speed 3000 rpm

Product Code: 80SVA01

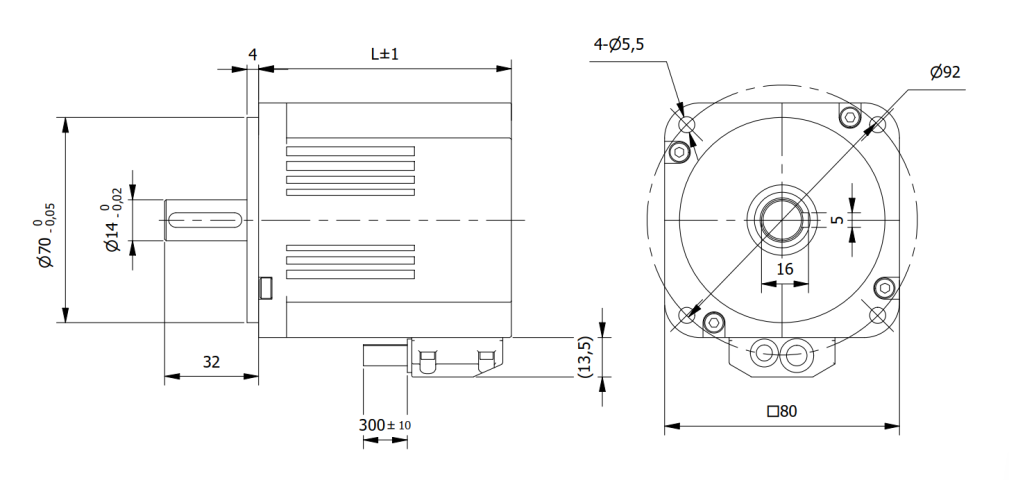

Technical Data Download Dimensions Combinations
Size80 mmLength (L)86 mm
Rated Voltage48 VdcRated Torque0.9 Nm
Rated Speed3000 rpmn° of Pole8
n° of Phase3 Max. Peak Torque2.7 Nm
Torque Constant0.118 Nm/ARated Current7.6 A
Max. Peak Current23 ANo-Load Current700 mA
Line to Line Resistance0.29 OhmLine to Line Inductance1.3 mH
Rotor Inertia544 gcm2Weight1.7 Kg
EncoderOptical - Incremental 1000 CPR / 2 Channel Hall Effect Angle120 °
Insulation ClassB Protection ClassIP65
Max. Radial Force (10mm from flange)115 NMax. Axial Force45 N
Insulation Resistance (min.500 VDC)100 MohmDielectric strength (for 1 sec.)600 VAC
Operating Temperature-20 to +55 °C
