Size
80 mm
Length (L)
155 mm
Nominal Voltage
48 VDC
Rated Torque
2.39 Nm
Rated Speed
3000 rpm
n° of Pole
10
n° of Phase
3
Rated Power
750 Watt
No-Load Speed
5000±10% rpm
Max. Peak Torque
7.17 Nm
Torque Constant
0.113 Nm/A
Rated Current
21 A
Max. Peak Current
63 A
No-Load Current
2 A
Back EMF constant
6.8 V/kRPM
Line to Line Resistance
0.064±10% Ohm
Line to Line Inductance
0.2±20% mH
Rotor Inertia
1.68 Kgcm
2
Brake
24VDC - 2.5Nm
Weight
3.2 Kg
Protection Class
IP65
Insulation Class
F 155°C
Radial Play
0.02mm (max.4N)
Axial Play
0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)
392 N
Max. Axial Force
147 N
Dielectric strength (for 1 sec.)
600 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
Encoder Type - Standard
Optical incremental 2500CPR
Encoder Type - Optional
on demand
Technical Files
Datasheet
3D STP file
Custom combinations are available on request.
Contact us
Gearboxes
GP80 -T - Torque
Planetary gearboxes - GP series
Size (mm)
80
Length (L) (mm)
103,5 - 129
Reduction Ratio
3,33 - 66,62
Nominal Output Torque (Nm)
10,58 - 47,85
Max. Input Speed (rpm)
3184 - 7000
Motor Controllers/Drives
Leo B1400
BLDC motor Controllers
Interface
Modbus-RTU, CANopen, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP, PowerLink
Power Supply
12 - 48 VDC
Phase Current up to (A rms)
30
Peak Current (A peak)
90 (for 2s.)
Motor Power up to (W)
1400
Leo B2000
BLDC motor Controllers
Interface
Modbus-RTU, CANopen, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP, PowerLink
Power Supply
12 - 48 VDC
Phase Current up to (A rms)
40
Peak Current (A peak)
90 (for 2s.)
Motor Power up to (W)
2000
Home
Products
>
Servomotors
>
Low voltage servomotors
>

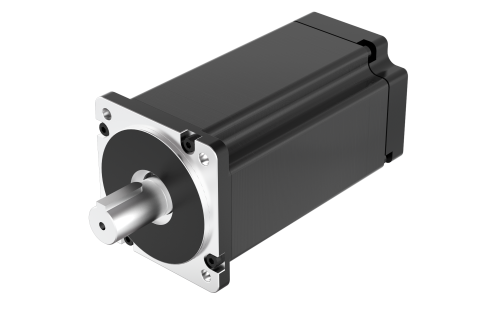

80SV-48VDC
80SV75-48V-30EA2
Product Code: 80SV75-48V-30EA2
Technical Data
Download

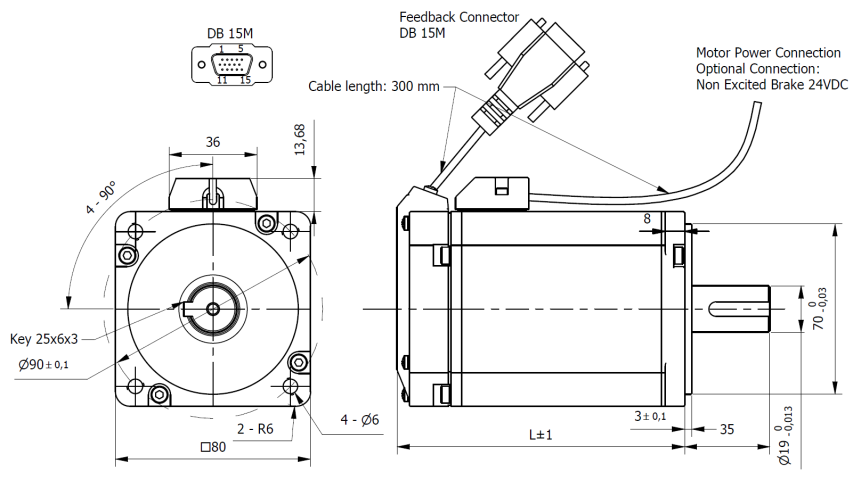

Dimensions
Combinations
Size
80 mm
Length (L)
155 mm
Nominal Voltage
48 VDC
Rated Torque
2.39 Nm
Rated Speed
3000 rpm
n° of Pole
10
n° of Phase
3
Rated Power
750 Watt
No-Load Speed
5000±10% rpm
Max. Peak Torque
7.17 Nm
Torque Constant
0.113 Nm/A
Rated Current
21 A
Max. Peak Current
63 A
No-Load Current
2 A
Back EMF constant
6.8 V/kRPM
Line to Line Resistance
0.064±10% Ohm
Line to Line Inductance
0.2±20% mH
Rotor Inertia
1.68 Kgcm
2
Brake
24VDC - 2.5Nm
Weight
3.2 Kg
Protection Class
IP65
Insulation Class
F 155°C
Radial Play
0.02mm (max.4N)
Axial Play
0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)
392 N
Max. Axial Force
147 N
Dielectric strength (for 1 sec.)
600 VAC
Insulation Resistance (min.500 VDC)
100 Mohm
Encoder Type - Standard
Optical incremental 2500CPR
Encoder Type - Optional
on demand
