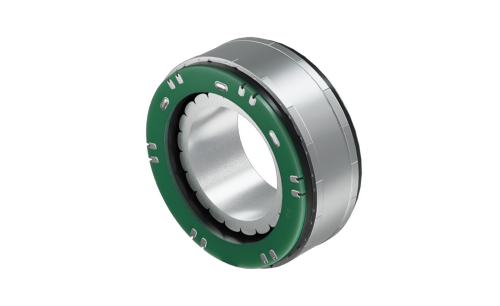

70BLF19-48V

70BLF19-48V

Stator OD 70 mm  |  Rotor ID 42 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 1 Nm  |  Rated Speed 3500 rpm

Product Code: 70BLF19-48V.000

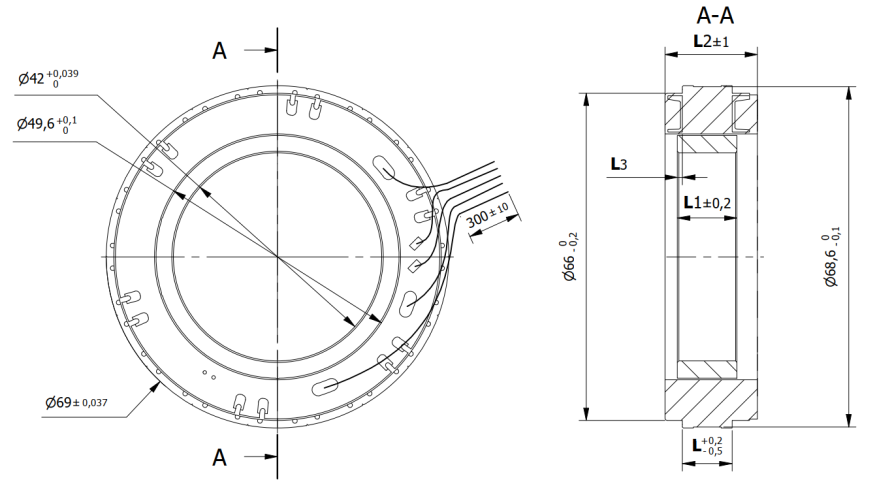

Technical Data Download Dimensions Combinations
Stator OD70 mmRotor ID42 mm
Rated Voltage48 VdcRated Torque1 Nm
Max. Peak Torque3 NmRated Speed3500 rpm
Max. Speed4500 rpmn° of Pole20
n° of Phase3 Torque Constant0.12 Nm/A
Rated Current9 AMax. Peak Current27 A
No-Load Current600 mALine to Line Resistance0.19 Ohm
Line to Line Inductance0.18 mHRotor Inertia376 gcm2
Back EMF7.2 Vrms/KrpmStator height (L)18.9 mm
Rotor height (L1)21 mmLength (L2)27 mm
Measure (L3)1 mmWeight0.296 Kg
Hall Effect Angle120 °Insulation ClassB
Dielectric strength (for 1 sec.)1000 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20°C +50°C Humiditymax. 85% not condensing
