60SH

Home   Products   >   Stepper motors   >   Hybrid Stepper motors   >   60SH

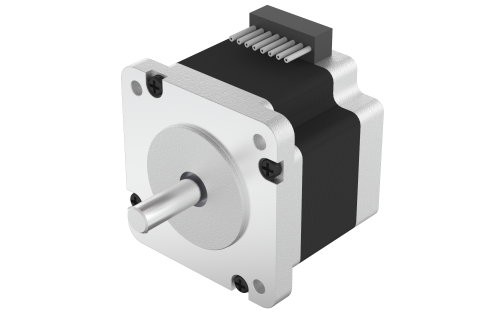

60SH56-2008AF

60SH56-2008AF

Product Code: 60SH56-2008AF.000

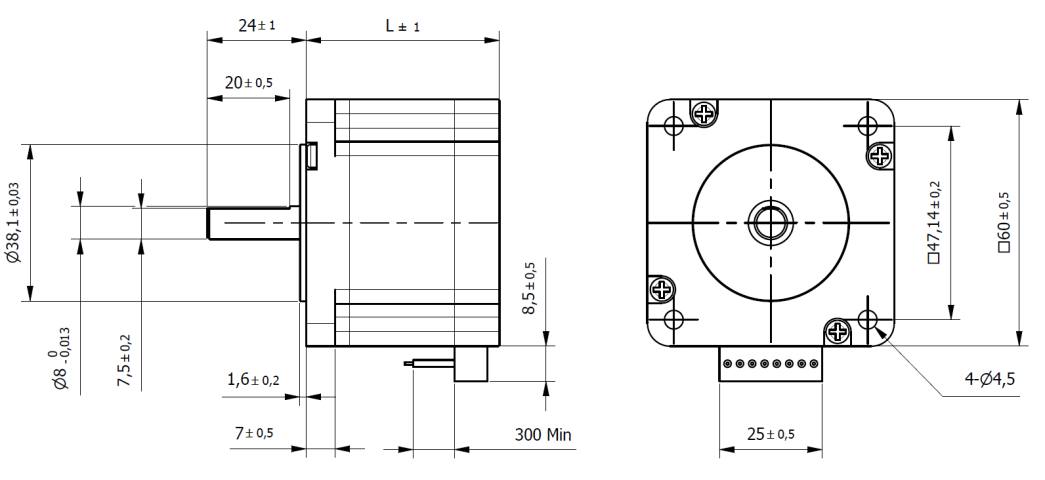

Technical Data Download Dimensions Combinations
SeriesSH Size60 mm
Nema24 Length (L)56 mm
Current/Phase2.8 AHolding Torque1.65 Nm
Step Angle1.8 °Rated Voltage2.52 Vdc
Resistance/Phase0.9 OhmInductance/Phase3.6 mH
Rotor Inertia400 gcm2Detent Torque0.069 Nm
N° of Leads8 Weight0.77 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
