60BLW

Home   Products   >   Brushless DC motors   >   Brushless DC Flat motors   >   60BLW

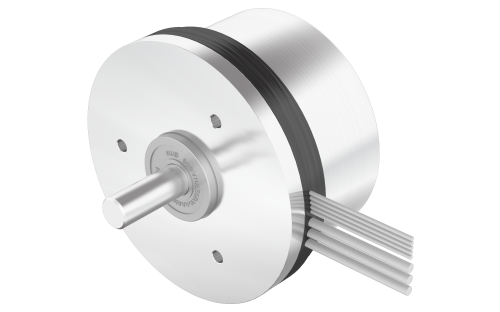

60BLWA38

60BLWA38

Product Code: 60BLWA38.000

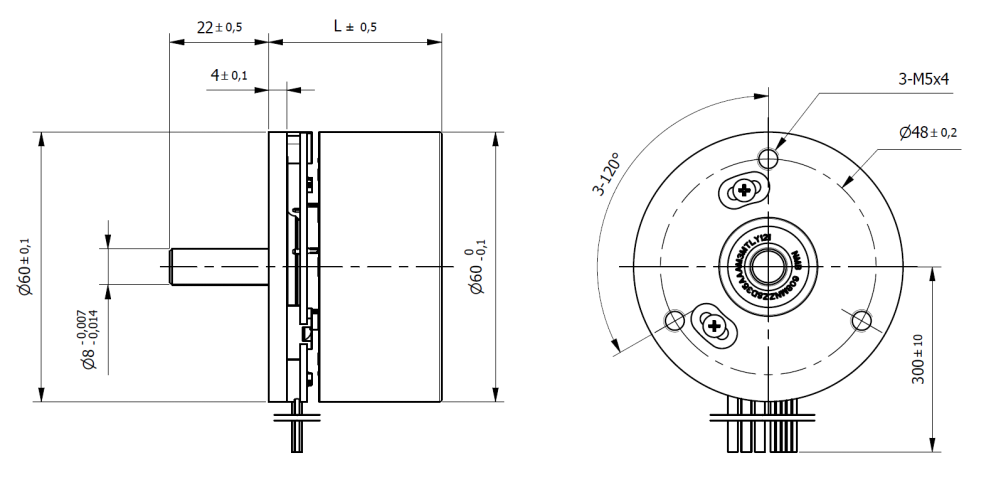

Technical Data Download Dimensions Combinations
Size60 mmLength (L)38 mm
Rated Voltage48 VdcRated Torque0.5 Nm
Rated Speed3400 rpmn° of Pole14
n° of Phase3 Max. Peak Torque1.5 Nm
Torque Constant0.108 Nm/ARated Current4.6 A
Max. Peak Current14 ANo-Load Current500 mA
Line to Line Resistance0.59 OhmLine to Line Inductance0.6 mH
Rotor Inertia1100 gcm2Weight0.5 Kg
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)55 NMax. Axial Force12 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
