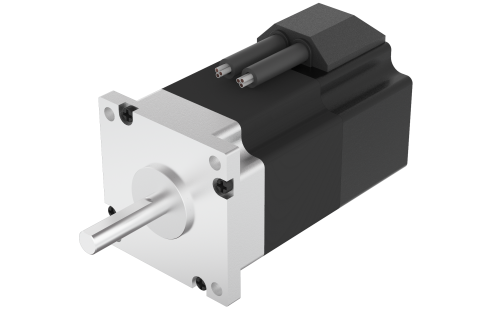

57SVA04

57SVA04

Size 57 mm  |  Length (L) 136 mm  |  Rated Voltage 36 Vdc  |  Rated Torque 0.6 Nm  |  Rated Speed 3000 rpm

Product Code: 57SVA04

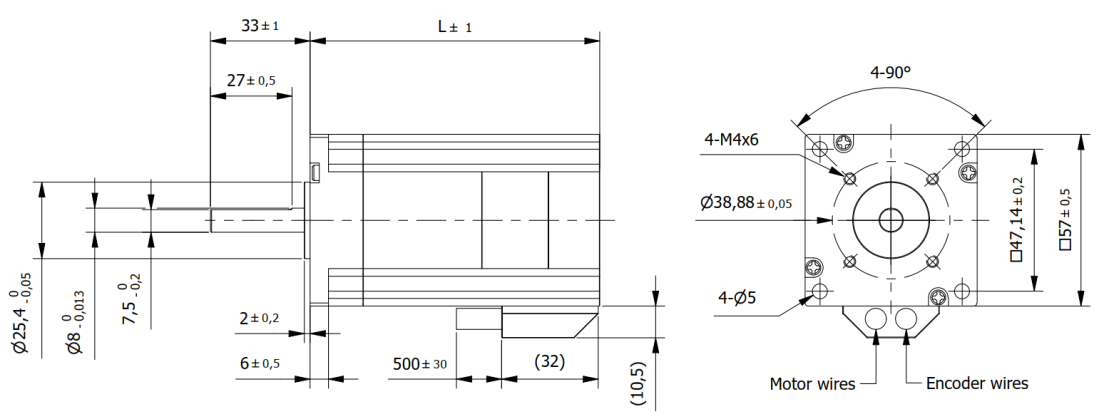

Technical Data Download Dimensions Combinations
Size57 mmLength (L)136 mm
Rated Voltage36 VdcRated Torque0.6 Nm
Rated Speed3000 rpmn° of Pole8
n° of Phase3 Max. Peak Torque1.8 Nm
Torque Constant0.075 Nm/ARated Current8 A
Max. Peak Current22.5 ANo-Load Current650 mA
Line to Line Resistance0.5 OhmLine to Line Inductance0.6 mH
Rotor Inertia430 gcm2Weight1.2 Kg
EncoderOptical - Incremental 1000 CPR / 2 Channel Hall Effect Angle120 °
Insulation ClassB Protection ClassIP30
Max. Radial Force (20mm from flange)115 NMax. Axial Force45 N
Dielectric strength (for 1 sec.)650 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20 to +40 °C
