57STC -H

Home   Products   >   Stepper motors   >   Hollow Shaft Stepper motors   >   57STC -H

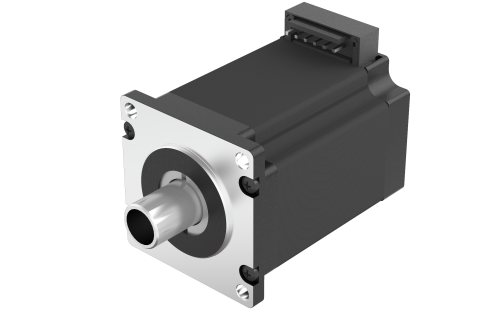

57STC76-4204A-H

57STC76-4204A-H

Product Code: 57STC76-4204A-H.000

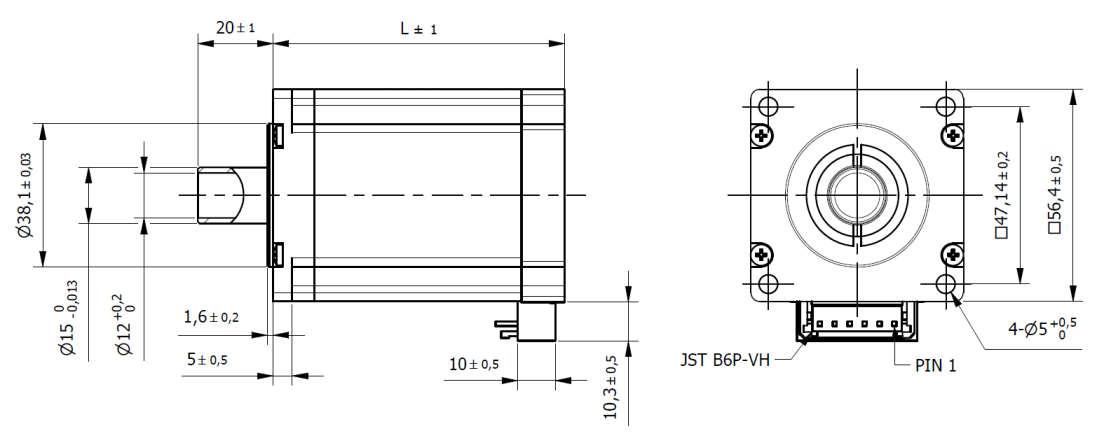

Technical Data Download Dimensions Combinations
Size57 mmNema23
Length (L)77.5 mmCurrent/Phase4.2 A
Holding Torque2.3 NmStep Angle1.8 °
Rated Voltage3.6 VdcResistance/Phase0.55 Ohm
Inductance/Phase2 mHRotor Inertia480 gcm2
Detent Torque0,068 NmN° of Leads4
Weight1.1 KgStep Angle accuracy±5 %
Insulation ClassB Protection ClassIP30
Operating Temperature-20°C +50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Radial Play (450g load)0,02 mmAxial Play (450g load)0,08 mm
Max. Radial Force (20mm from flange)75 NMax. Axial Force15 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
