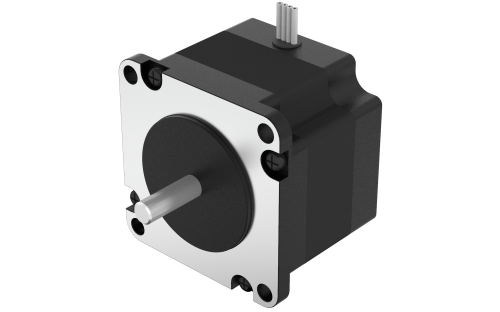

57SH51-3A

57SH51-3A

Series SH   |  Size 57 mm  |  Nema 23   |  Length (L) 51 mm  |  Current/Phase 3 A  |  Holding Torque 0.72 Nm  |  Step Angle 1.8 °

Product Code: 57SH51-3A.000

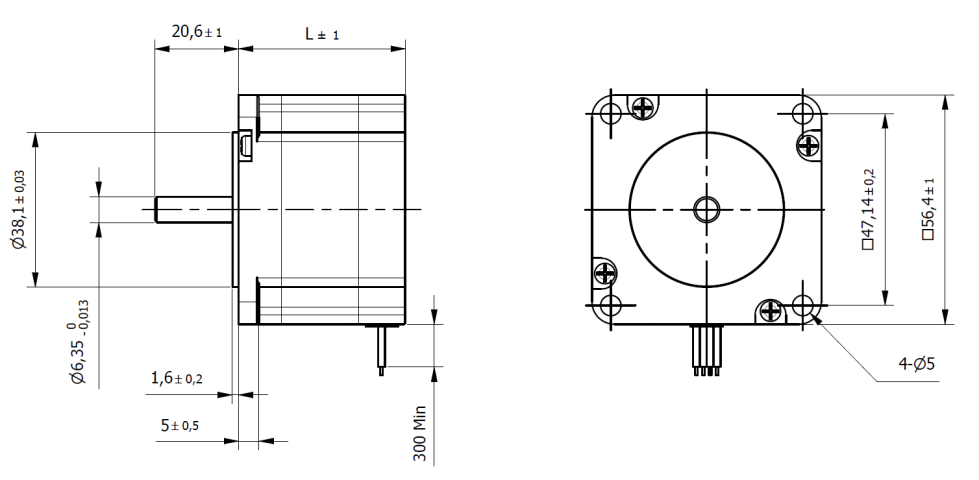

Technical Data Download Dimensions Combinations
SeriesSH Size57 mm
Nema23 Length (L)51 mm
Current/Phase3 AHolding Torque0.72 Nm
Step Angle1.8 °Rated Voltage2.2 Vdc
Resistance/Phase0.74 OhmInductance/Phase0.9 mH
Rotor Inertia275 gcm2Detent Torque0.035 Nm
N° of Leads6 Weight0.65 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
