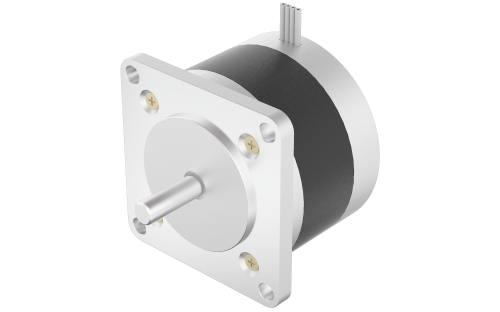

57S41-4A

57S41-4A

Product Code: 57S41-4A.000

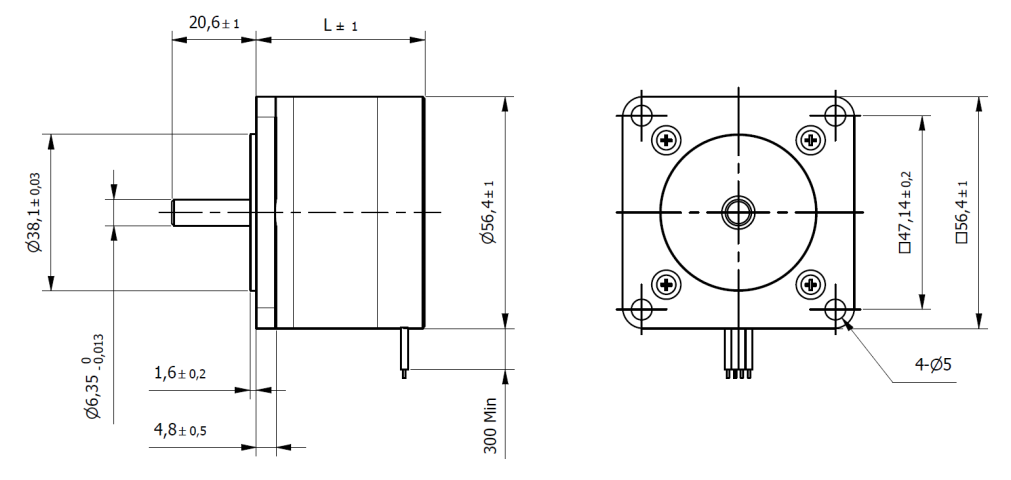

Technical Data Download Dimensions Combinations
SeriesS Size57 mm
Nema23 Length (L)41 mm
Current/Phase1.56 AHolding Torque0.4 Nm
Step Angle1.8 °Rated Voltage2.8 Vdc
Resistance/Phase1.8 OhmInductance/Phase3.6 mH
Rotor Inertia57 gcm2Detent Torque0.018 Nm
N° of Leads4 Weight0.54 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
