57N

Home   Products   >   Stepper Linear Actuators   >   Non-Captive hybrid stepper linear actuators   >   57N

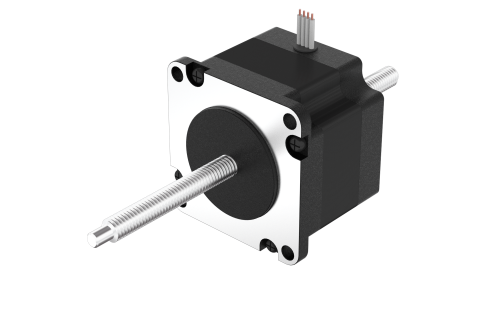

57N45-30-DA100

57N45-30-DA100

Product Code: 57N45-30-DA100

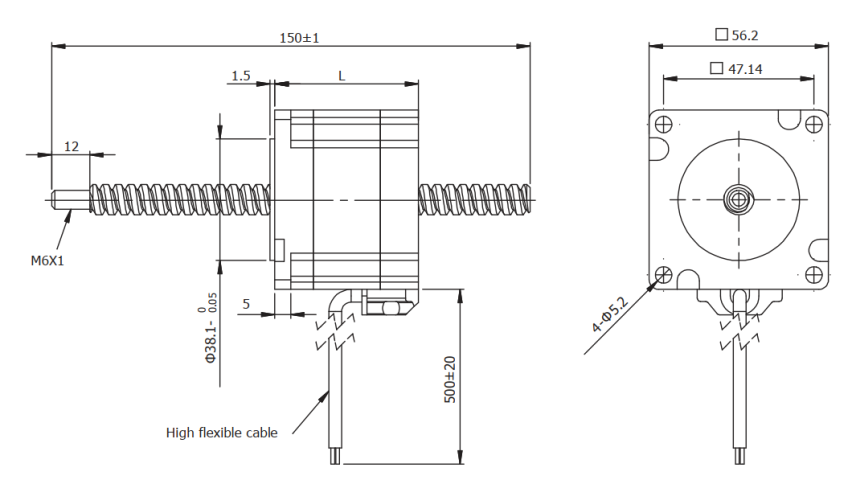

Technical Data Download Dimensions Combinations
Size57 mmNema23
Length (L)45 mmCurrent/Phase3 A
Rated Voltage2.3 VdcResistance/Phase0.75 Ohm
Inductance/Phase2.5 mHN° of Leads4
Rotor Inertia150 gcm2Weight580 g
Thrust ref1000 NScrew Diameter9.525 mm
Screw Lead1.27 mmTravel per Step0.00635 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
