57E

Home   Products   >   Stepper Linear Actuators   >   External hybrid stepper linear actuators   >   57E

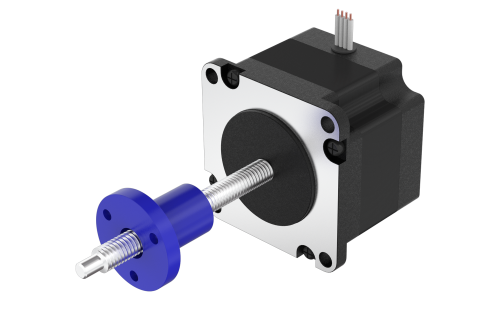

57E55-30-DE100

57E55-30-DE100

Product Code: 57E55-30-DE100

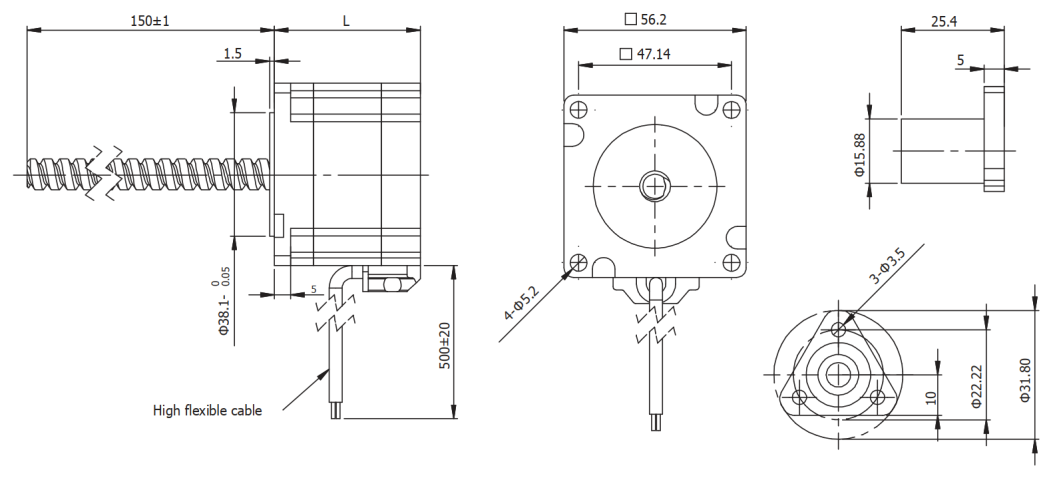

Technical Data Download Dimensions Combinations
Size57 mmNema23
Length (L)55 mmCurrent/Phase3 A
Rated Voltage3 VdcResistance/Phase1 Ohm
Inductance/Phase4.5 mHN° of Leads4
Rotor Inertia300 gcm2Weight710 g
Thrust ref60 NScrew Diameter9.525 mm
Screw Lead25.4 mmTravel per Step0.127 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
