57 3P

Home   Products   >   Stepper motors   >   3-Phase Hybrid Stepper motors   >   57 3P

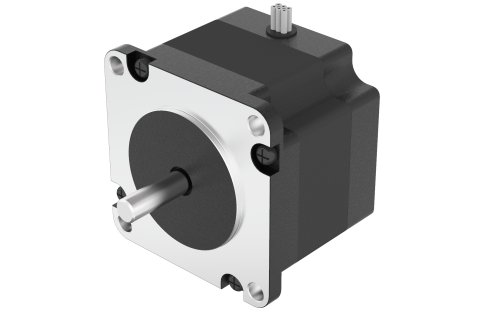

573P42-5206A

573P42-5206A

Product Code: 573P42-5206A.000

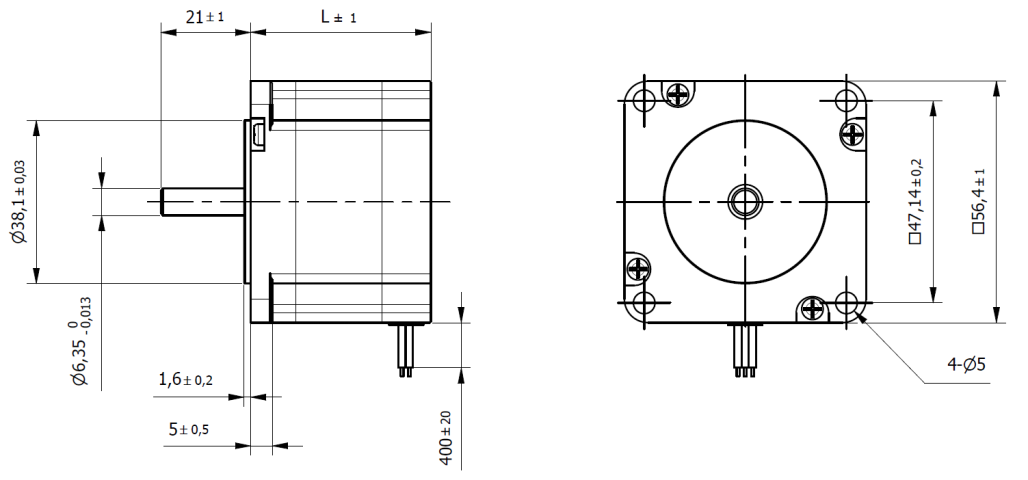

Technical Data Download Dimensions Combinations
Size57 mmNema23
Length (L)42 mmCurrent/Phase5.2 A
Holding Torque0.45 NmStep Angle1.2 °
Rated Voltage6.76 VdcResistance/Phase1.3 Ohm
Inductance/Phase1.4 mHRotor Inertia110 gcm2
N° of Leads6 Weight0.45 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)75 N
Max. Axial Force15 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
