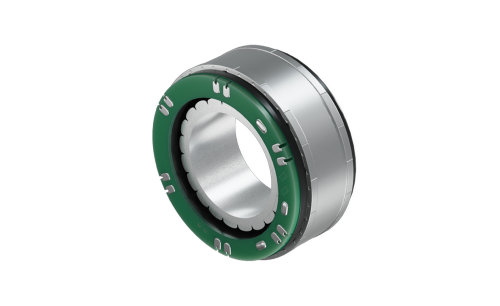

50BLF15-48V

50BLF15-48V

Stator OD 50 mm  |  Rotor ID 30 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 0.5 Nm  |  Rated Speed 3500 rpm

Product Code: 50BLF15-48V.000
Technical Data Download Dimensions Combinations
Stator OD50 mmRotor ID30 mm
Rated Voltage48 VdcRated Torque0.5 Nm
Max. Peak Torque1.5 NmRated Speed3500 rpm
Max. Speed4800 rpmn° of Pole20
n° of Phase3 Torque Constant0.117 Nm/A
Rated Current4.8 AMax. Peak Current14.5 A
No-Load Current600 mALine to Line Resistance0.7 Ohm
Line to Line Inductance0.38 mHRotor Inertia95.93 gcm2

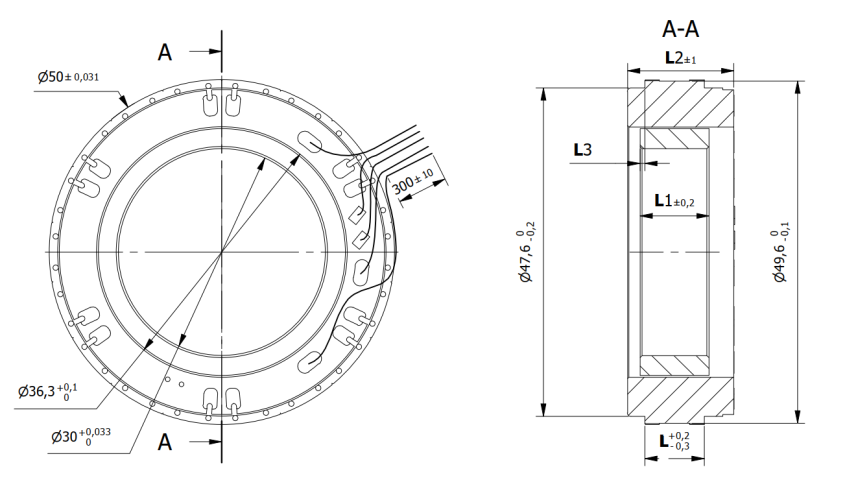

Back EMF7.1 Vrms/KrpmStator height (L)15 mm
Rotor height (L1)17 mmLength (L2)21.6 mm
Measure (L3)1 mmWeight0.128 Kg
Hall Effect Angle120 °Insulation ClassB
Dielectric strength (for 1 sec.)1000 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20°C +50°C Humiditymax. 85% not condensing
