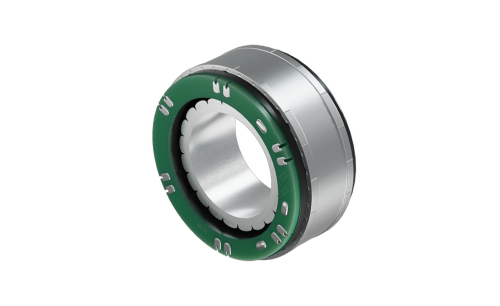

50BLF08-48V

50BLF08-48V

Product Code: 50BLF08-48V
Technical Data Download Dimensions Combinations
Stator OD50 mmRotor ID30 mm
Rated Voltage48 VdcRated Torque0.3 Nm
Max. Peak Torque0.96 NmRated Speed5000 rpm
Max. Speed6200 rpmn° of Pole20
n° of Phase3 Torque Constant0.089 Nm/A
Rated Current3.6 AMax. Peak Current11.6 A
No-Load Current400 mALine to Line Resistance0.93 Ohm
Line to Line Inductance0.46 mHRotor Inertia56.36 gcm2

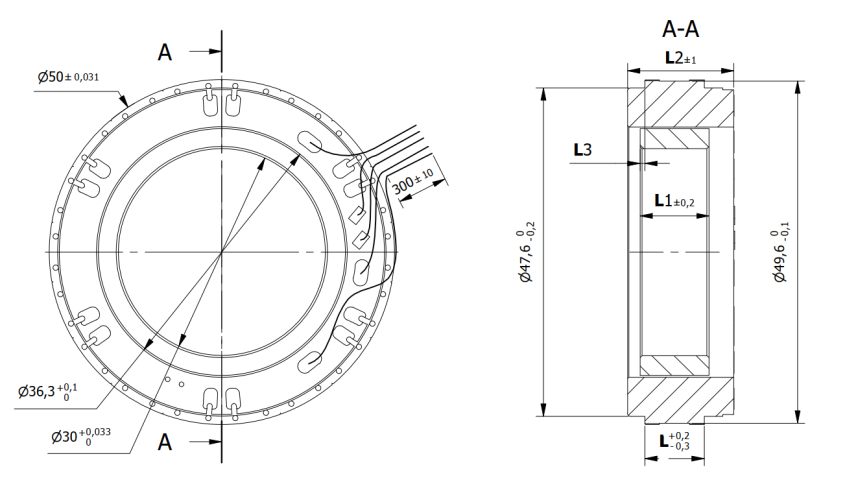

Back EMF5.4 Vrms/KrpmStator height (L)8.6 mm
Rotor height (L1)10 mmLength (L2)15.4 mm
Measure (L3)0.7 mmWeight0.105 Kg
Hall Effect Angle120 °Insulation ClassB
Dielectric strength (for 1 sec.)1000 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20°C +50°C Humiditymax. 85% not condensing
