42SH - 0.9° step

Home   Products   >   Stepper motors   >   Hybrid Stepper motors   >   42SH - 0.9° step

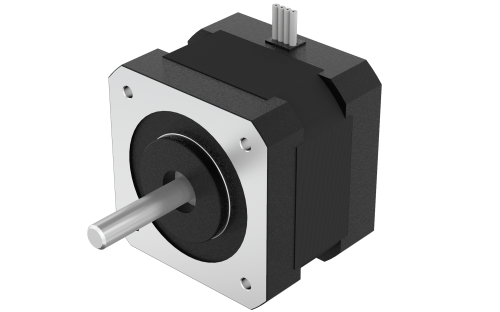

42SH33-1AM

42SH33-1AM

Product Code: 42SH33-1AM.000

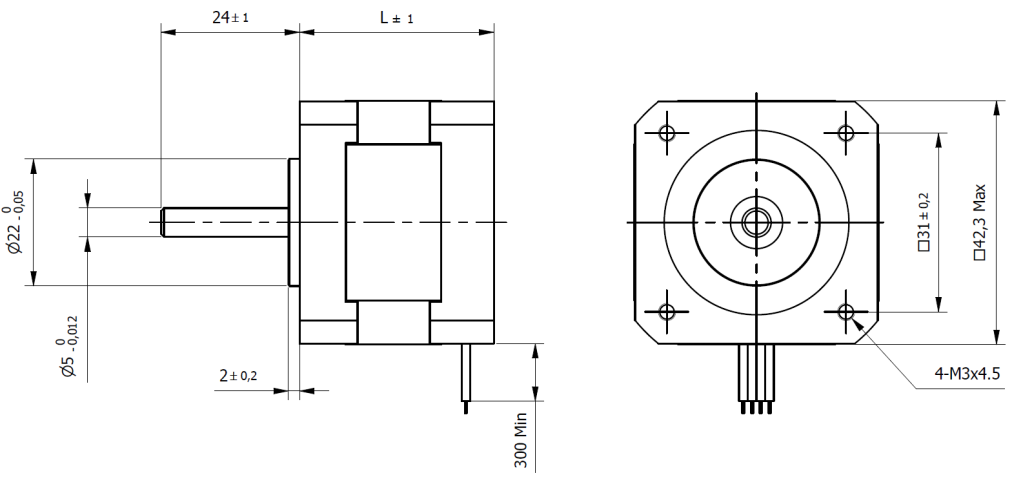

Technical Data Download Dimensions Combinations
SeriesSH Size42 mm
Nema17 Length (L)33.5 mm
Current/Phase0.95 AHolding Torque0.158 Nm
Step Angle0.9 °Rated Voltage4 Vdc
Rotor Inertia35 gcm2Weight0.22 Kg
Resistance/Phase4.2 OhmInductance/Phase4 mH
Detent Torque0.020 NmN° of Leads6
Step Angle accuracy±5 %Insulation ClassB
Operating Temperature-20°C +50°C Max. Temp. Rise (rated current, 2-phase on)80 °C
Insulation Resistance (min.500 VDC)100 MohmDielectric Strength (for 1min.)500 VAC
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (20mm from flange)28 NMax. Axial Force10 N
Protection ClassIP30
