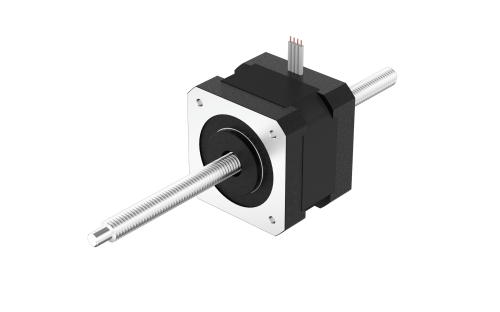

42N60-25-CA100

42N60-25-CA100

Size 42 mm  |  Nema 17   |  Length (L) 60 mm  |  Current/Phase 2.5 A  |  Travel per Step 0.00635 mm

Product Code: 42N60-25-CA100

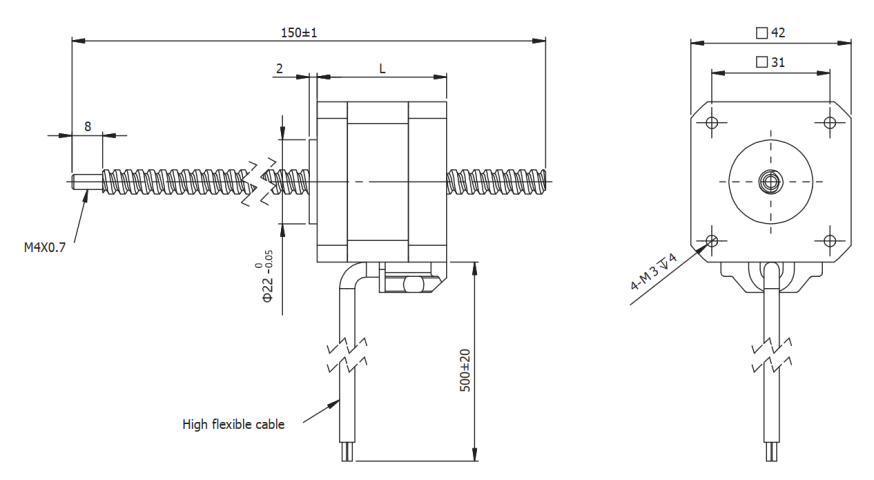

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)60 mmCurrent/Phase2.5 A
Rated Voltage2.5 VdcResistance/Phase1 Ohm
Inductance/Phase2.8 mHN° of Leads4
Rotor Inertia105 gcm2Weight450 g
Screw Diameter6.35 mmScrew Lead1.27 mm
Travel per Step0.00635 mmScrew Length (Ls)100 mm
WiringBipolar Step Angle1.8 °
Insulation ClassB Protection classIP20
Operating Temperature-20°C +50°C Temperature Risemax. 80 °C
Dielectric strength (for 1 sec.)500 VAC
