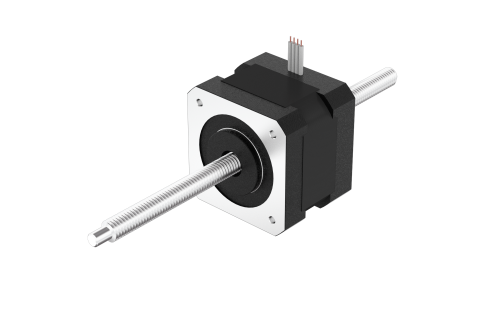

42N48-25-CE100

42N48-25-CE100

Size 42 mm  |  Nema 17   |  Length (L) 48 mm  |  Current/Phase 2.5 A  |  Thrust ref 50 N  |  Travel per Step 0.127 mm

Product Code: 42N48-25-CE100

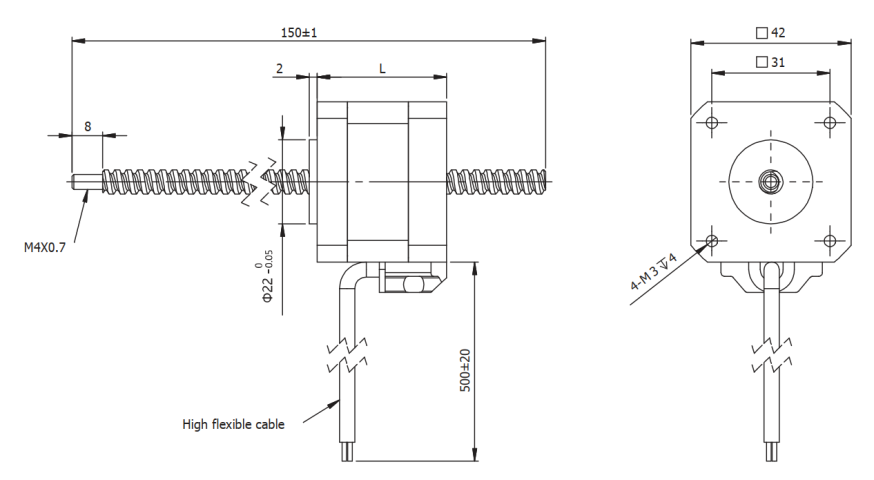

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)48 mmCurrent/Phase2.5 A
Rated Voltage2 VdcResistance/Phase0.8 Ohm
Inductance/Phase1.8 mHN° of Leads4
Rotor Inertia70 gcm2Weight385 g
Thrust ref50 NScrew Diameter6.35 mm
Screw Lead25.4 mmTravel per Step0.127 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
