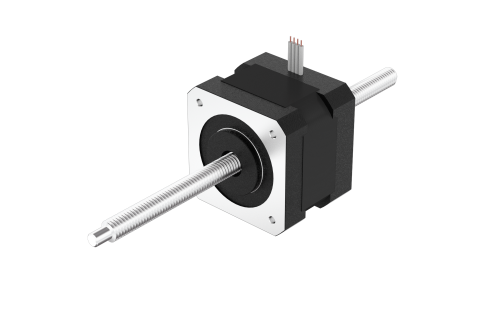

42N40-15-CD100

42N40-15-CD100

Size 42 mm  |  Nema 17   |  Length (L) 40 mm  |  Current/Phase 1.5 A  |  Thrust ref 50 N  |  Travel per Step 0.0635 mm

Product Code: 42N40-15-CD100

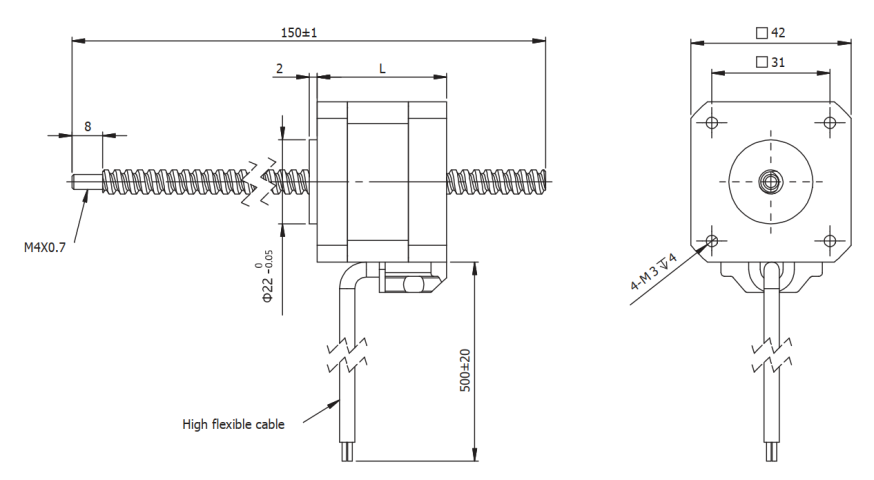

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)40 mmCurrent/Phase1.5 A
Rated Voltage3.3 VdcResistance/Phase2.2 Ohm
Inductance/Phase4.6 mHN° of Leads4
Rotor Inertia55 gcm2Weight290 g
Thrust ref50 NScrew Diameter6.35 mm
Screw Lead12.7 mmTravel per Step0.0635 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
