42E

Home   Products   >   Stepper Linear Actuators   >   External hybrid stepper linear actuators   >   42E

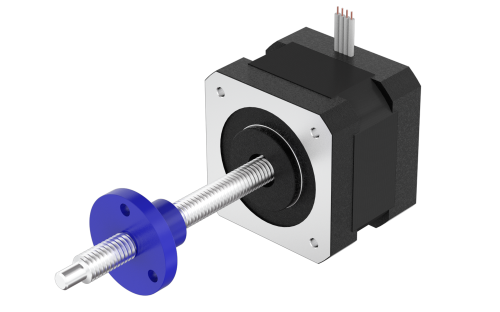

42E60-25-CE100

42E60-25-CE100

Product Code: 42E60-25-CE100

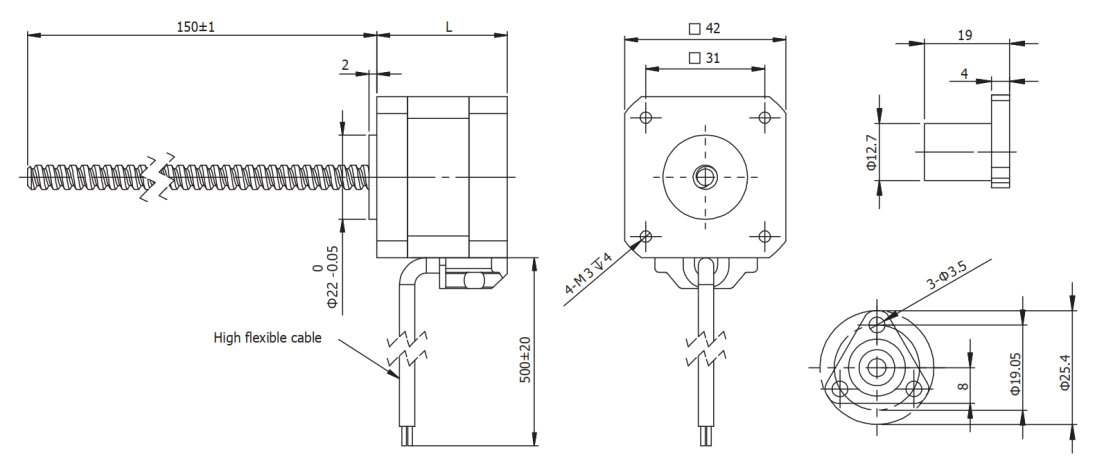

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)60 mmCurrent/Phase2.5 A
Rated Voltage2.5 VdcResistance/Phase1 Ohm
Inductance/Phase2.8 mHN° of Leads4
Rotor Inertia105 gcm2Weight450 g
Thrust ref75 NScrew Diameter6.35 mm
Screw Lead25.4 mmTravel per Step0.127 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
