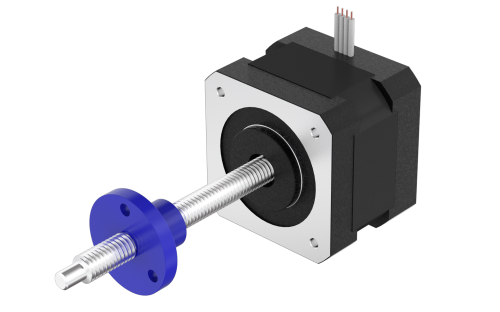

42E34-15-CB100

42E34-15-CB100

Size 42 mm  |  Nema 17   |  Length (L) 34 mm  |  Current/Phase 1.5 A  |  Thrust ref 245 N  |  Travel per Step 0.0127 mm

Product Code: 42E34-15-CB100

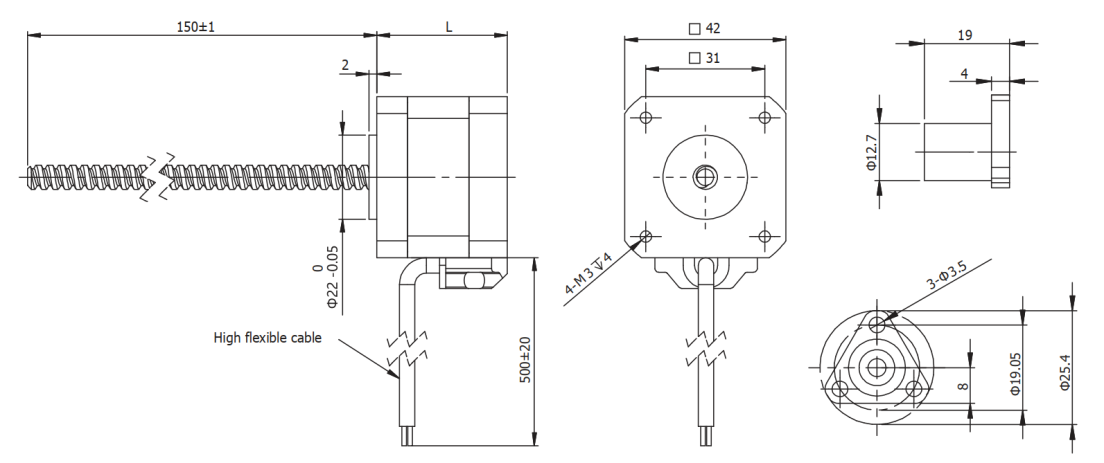

Technical Data Download Dimensions Combinations
Size42 mmNema17
Length (L)34 mmCurrent/Phase1.5 A
Rated Voltage2.6 VdcResistance/Phase1.8 Ohm
Inductance/Phase2.6 mHN° of Leads4
Rotor Inertia35 gcm2Weight250 g
Thrust ref245 NScrew Diameter6.35 mm
Screw Lead2.54 mmTravel per Step0.0127 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
